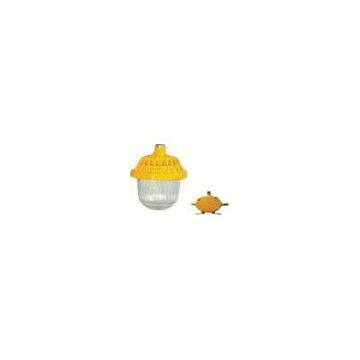

Explosion Proof Light Fittings , 70W / 100W / 150W MH / HPS IP65 Platform light
- T/T L/C D/P D/A
- 7 days
You May Like
-
Mine / Coal Industry Explosion Proof Light Fittings , 70w Ip65 MH Flameproof Light
-
5500lm 70w AC127V Explosion Proof Light Fittings For Railway Outdoor Lighting
-
70w Explosion-proof MH Explosion Proof Light Fittings For Tunnel / Roadway
-
Industry Ex-Proof Platform Light For Workshop Lighting , MH 70W / 100W / 150W IP65
-
Halide Light 400w Ex-Proof Light , HPS / MH Explosion Proof Light Fittings
-
250w / 400w IP65 AC220V Ex-proof Indoor Flood Light For Coal Industry
Product Details
| Brand Name | CXS | Place of Origin | China | |
| Model Number | CBPC8720 |
Product Description
Explosion Proof Light Fittings , 70W / 100W / 150W? MH / HPS IP65 Platform light
Quick Detail:
Place of Origin: Zhejiang, China (Mainland) Brand
Number: CBPC8720
Light Source:MH/HPS
Watt: 70W/100W/150W
Material: aluminum alloy
Payment Terms:T/T,L/C
Certificate:ISO9001
Applications:
Suitable for flammable and explosive place security work, for a variety of indoor and outdoor workplaces. China\'s coal industry, China petroleum, Sinopec, electricity, metallurgy, railway, steel, shipbuilding, military, aerospace, public security fire control, chemical industry and the use of large enterprise fixed lighting needs.
Features:
Explosion-proof function:The products are in strict accordance with the GB3836-2010 ,can work safely in flammable and explosive environment. Adopt efficient MH gas discharge light source.The average service life over to 10000 hours,can effectively reduce the user’s cost. The shell adopts the latest surface treatment technology and sealing technology,can prevent rain,water.Lamps shell never corrosion and rust.Multiple shock decompression measures to ensure light can work in violent vibration,wind and other harsh environments.Reflective mirror adopts imported high purity alumina reflector,high reflectivity ,good cast light efficiency,large range of irradiation.? Installation:Adopt ceiling type,seater type,wall mounting type and other manners of installation.Simple operation,beautiful appearance.Distribution Curve
Characteristics
|
NO. |
Light Source |
Rated Power(W) |
Luminouse flux(Lm) |
Service Life(H) |
|
CBFC8720-J70 |
MH |
70W |
5500 |
10000 |
|
CBFC8720-J100 |
MH |
100W |
9000 |
10000 |
|
CBFC8720-J150 |
MH |
150W |
13000 |
10000 |
|
CBFC8720-N70 |
HPS |
70W |
6000 |
28500 |
|
Rated voltage: |
220VAC 50HZ |
|||
|
Explosion-proof mark: |
Exd II CT4/T6 |
|||
|
Enclosure: |
IP65 |
|||
|
Insulation Class: |
I |
|||
|
Protection Category: |
WF2 |
|||
|
Inlet Thread: |
G3/4 |
|||
|
Distance Ratio: |
2.2 |
|||
|
Drop Cable: |
?8-?14mm |
|||
|
Dimensions: |
?180*270mm(Lamp) ?235*125mm(Ballast Box) |
|||
|
Total Weight: |
3.2kg(Lamp) 3.5kg(Ballast Box) |
Product Dimensions and Installation
