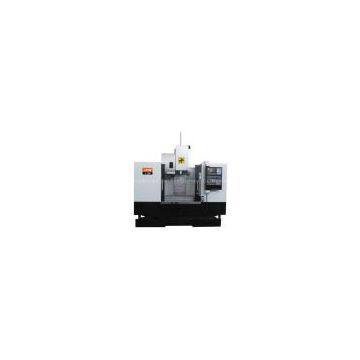

FANUC/ Mitsubishi CNC machining center for metal working

Machine Features

* Machine body is optimized design by computer CAD/CAM, with the structure of wide body and

column.Casting by the quality Meehanite resin sand process. Times effect of aging treatment

times,

* The adoption of C3 grade precise ball screws and the use of special bearing on the ball

screw with pre-pull treatment as well as laser detective compensation have ensured the

rigidity and precision.

* The adoption of balance weight block with motion-based device has prevented the spindle

form vibration when weight-balanced block moves up and down, avoiding influencing the

processing accuracy.

* The main base parts of machine are made from high-grade ,high quality gray casting iron

with aging treatment, the guide rails with high-frequency quenching treatment and delicate

grinding ,covered with low frictional coefficient TURCITE-B and dealt with delicate scraping

,having effectively improved motional quality of machine and necessary touching rigidity for

cutting.

Machine Parameter

Worktable

Table size/(L*W) 1120 x 510

T-slot size/mm        100x 18 x 5

Max load on the table/kg 600 kg

Travel

Max. X/Y/Z axis travel 1000 / 560 / 510

Spindle nose to table surface/mm 110 ~620

Spindle nose to column surface/mm 610

Spindle

Spindle taper No.40

Max. Spindle speed/rpm (Standard) 8000 rpm

Spindle driven (Standard) 1:1Timing Belts

Spindle driven (Optional) Direct Connection

Feeding

Max cutting feed rate(M/min) 10000

X,Y,Z rapid traverse 36/36/36 m/min

A.T.C

Tool magazine type Disc Type/ Hat Type

Tool magazine capacity 20/24

Max. tool diameter and length ? 80 x 200

Max. tool weight 8 kg

Tool shank type BT40

Servo Motor

Spindle motor 7.5/11 kW

X/Y/Z axis servo motor (Fanuc) 1.8 / 1.8 / 1.8 kW

X/Y/Z axis servo motor (Mitsubishi) 2.0 / 2.0 / 2.0 kW

Coolant motor 0.49 kW

Accuracy

Positioning accuracy ±0.005mm

Repeatability positioning accuracy ±0.003mm

General

Air Requirements 6KG

Power Capacity 15KVA

Measurement 2.7x2.4x2.5m

N.W. 5500 kg

Standard configuration

1. Fanuc 0i mate MD controller

2. Standard CF card interface(FANUC

0I system)

3. RS-232 interface

4. RS-232 communication line

5. Three-color indicator

6. Working lamp

7. Heat Exchanger for Electrical Cabinet

8. Air blast through spindle

9. Chip cooling device

10. Automatic centralized lubrication system

11. Tool cabinet

12. Operation manual

13. Maintenance manual

Optional configuration

1. Mitsubishi M70 controller

2. Automatic tool measurement

3. Disc type 24 turret tools

4. Hat type 20 turret tools

5. Spiral chip removal device

6. Turntable (fourth axis)

7. Voltage regulator (220/380V)

8. Spindle Cooling System

9. APO(Automatic Power Off)

10. 10000RPM(BT40)Spindle

11. 12000RPM(BT40)Spindle

After-sale Warranty

1.Warranty: 1 year for the machine

2.Replace all parts for free during the warranty period(no human damage)

3.Provide technical services to the door  (We have professional engineers to offer machine

installation commissioning and maintenance)
