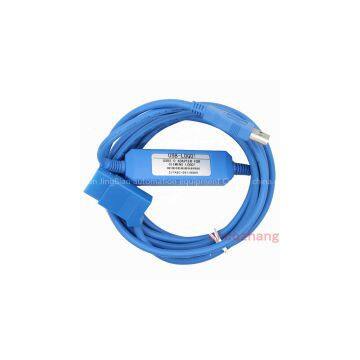

2011 NEW Smart optical Isolated USB-LOGO Programming Cable for Siemens LOGO! USB Version PLC,6ED1 057-1AA01-0BA0

2011 NEW PLC CABLE NOW AVAILABLE! NEW FEATURES! MORE RELIABLE!

Power LED indicator, appearing white when in optical isolated status and yellow when not non-isolated status.

SIEMENS LOGO USB-LOGO Isolated Cable 6ED1 057-1AA00-0BA0 PLC CABLE

Descriptions:

LOGO! USB-CABLE is a programming cable which use the USB interface to achieve the serial connection and the conversion of peripheral port signal.Cable programming is provided theough the USB interface connecter and serial peripherals signal converter programming,under the control of computer operation,simulating the computer?s USB interface to traditional serial(commonly known as COM port),thus using the current programming software,communicating software and monitoring software.The work power of the cable comes from USB port and programming port of LOGO controller.

USB-LOGO! CABLE is photoelectric isolated,can be applied to LOGO Controller,especially the industrial fields with greater interference and easily damaged communication port. All kinds of protection measures in the circuit give promission to the safe operation of the system.

Features

• Support SIEMENS LOGO COMFORT 6.0 and above. (for newest LOGO!, please use V6.1 soft)

• Support Win7/Windows 2000/Windows XP (WinNT4/95/98/Me/DOS NOT SUPPORTED).

• Smart LED indicator. Auto identification of optical isolation status.

• baud rate: 300 bps ~ 1Mbps automatically adaptive.

• USB bus-powered, with current consumption of 50 mA

• Each PC Support multiple cables

• Working temperature -20~+75°C

• Support UART data format: Data bit: 7,8, stop bit: 1, 2, Parity: odd / even / no parity

• Compatible with USB V1.1 and V2.0

• Reliable performance & reasonable price

Usage:

USB device drivers should be installed before using programming cable, which are available on the CD-ROM sold together with the cable. And for the specific installation steps, please refer to the instruction files on the CD-ROM drivers, and details are not necessarily listed here.

After completing Driver installation, the corresponding COM port for the programming cable will be displayed in the Device Manager of Window. The step next is just to choose this COM port in the programming software and other application software and keep other communication parameters as in the Default settings. And the following steps are exactly the same as in the traditional programming cables with RS232 interfaces.

Package info
1 x USB-LOGO! PLC Programming Cable
1 x Software CD
