Floor Panel Cold Roll Forming Machine , PLC Electronic Controlling

Quick Detail:

1. Floor panel roll forming machine ?

2. The thickness of material sheet: 1.5≤§≤2.0㎜

3. The width of material: 250≤§≤450㎜

Description:

Equipment structure: It is making up of de-coiler, guide rack, leveler, flatting, continuously punching

machine, roll forming, correction, cutting-to-length (punching), collection table, electrical control

system etc.

Functions and Features:

Roll forming craftwork :De-coiler --- Guide --- leveler --- flatting --- Punching --- Roll forming --- cutting-

to-length --- collection table

Specifications:

Unit performance

1. The thickness of material sheet: 1.5≤§≤2.0㎜

??? The width of material: 250≤§≤450㎜

2. Product speed: 10-12m/min

3. Occupy ground area:? length 30m x width 3m

4. Total power: about35.5kw

Each part main parameter:

1. Auto De-coiler

2. De-coiler: ?de-coiler, Inner expanding type, capacity:5T

3. Drive 2KW Frequency conversion motor

4. Inner diameter material roll: ￠500~￠520mm

5. Outer diameter material roll: ≤1600mm

Inductor automatically control feed speed

1. Guide rack

2. Leveler

Motor: 4KW Frequency conversion motor

Flatting

Drive: 1kw Servo controlling

Punching Device

Material of punching die: Cr12Mov, Quenching, Hardness: HRC58-62o

Forming machine

1. Rack: ?Cast iron torii? type,?? material:HT200

2. Roll forming rack:? 16 sets

3. Axis diameter: ￠70mm, material: 40Cr quenching treatment?

4. Material: GCr15, Quenching, Hardness: HRC58-62o

5. Motor power:? 22KW Frequency conversion motor ZQ400 reducer

Cutting Device

1. Hydraulic pressure cutting

2. Hydraulic pressure pump:5.5KW

3. Material of cutting blade: Cr12, Quenching

4. Electronic controlling: PLC

Competitive Advantage:

1. our machines are famous for good quality and inexpensive ,

2. we can supply good after sevice .

3. one year guarantee.

4. We can design the machines according to customers’ special requirement .

5. We have professional team for service.

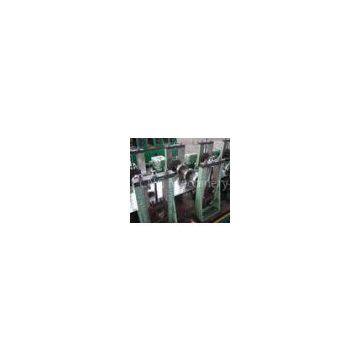

PHOTOS:
