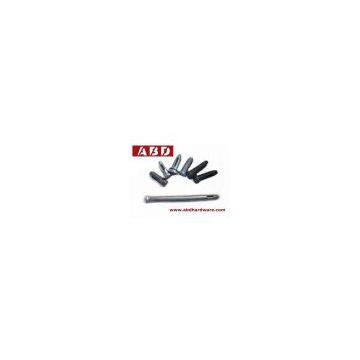

Aluminum form pin

Specifications

1 concrete formwork accessories
2 concrete formwork combo pin/standard pin/ flat head pin
3 aluminum form pin

standard pin

1 the material is steel

2 concrete formwork standard pin

3 lenth x width 72mm x 16mm

4 with good quality and competitive price.

Our round, tapered pins have a milled wedge slot. the shank is designed to eliminate pin sag and improve ease of stripping. Pins are made from steel and are heat-treated for long life.

combo pin

1 the material is steel

2 concrete formwork combo pin

3 lenth x width: 120mm x 16mm

4 with good quality and competitive price.

This pin passes completely through 2" aluminum fillers and connects adjoining panels with a wedge. To convert to either 1" or 1?" filler simply insert duplex nail in the appropriate hole.
Combination with head - 1", 1?", 2"

Flat head pin

1 the material is steel

2 concrete formwork flat head pin

3 with good quality and competitive price.

The flathead pin is used when pinning through a single rail or when placing concrete against an existing wall. Also used in lay down applications, such as 36” 96” panel, to pour a 36” tall concrete wall
