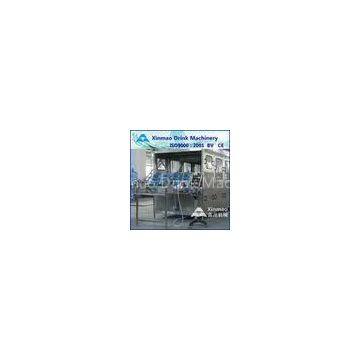

2 - 10 Heads 5 Gallon Water Filling Machine , PLC Washing Filling Capping System
- T/T L/C D/P D/A
- 7 days
You May Like
-
Rotary 3 Gallon / 5 Gallon Water Filling Machine For Pure Water / Mineral Water
-
QGF Series Barrel 5 Gallon Water Filling Machine , 10 Heads 1200BPH
-
5 Gallon Water Filling Machine , 3 In 1 Liquid Filling Production Line
-
Fully Automatic 5 Gallon Water Filling Machine For Barrel / PET Bottle
-
1200BPH High Speed 5 Gallon Water Filling Machine For Barrel
-
PET Bottle Beverage Filling Machine
Product Details
| Brand Name | XinMao | Place of Origin | China | |
| Model Number | QGF450 |
Product Description
Certification:ISO
2 - 10 Heads 5 Gallon Water Filling Machine , PLC Washing Filling Capping System
Quick Detail:
Filling temperature: 20-40degree Bottle volume: 5 gallon 20L Filling capacity: we can offer 100bph-1200bph After service: with professional engineer to customer factory to installment and train Material: sus 304/316 Packing: wooden package Voltage: 380V 50Hz/ by order Power: 5-18KW
Description:
Automatic QGF450 5 gallon 20L barrel drink/pure/mineral water filling machine????
5 gallon filling machine,automatic barrel filling machine,5 gallon filling line,barrel filling machine ,filling machine,filling equipment,filling and sealing machine
?
This filling line specially produces 5 gallons bottled drinking water,whose types(b/h)are:100 type,200type,300type,450 type,600type,900 type,1200type and 2000 type.integrate bottle washer,filler and sealer into one unit,in order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and leaching are used in bottle washer,Washing solution can boused circularly.The sealer can seal bottle caps automatically.This line equips with water spraying device to sterilize caps of bottle sin order to ensure those caps are aseptic and healthy,also this line can automatically carry out bottle feeding washing,sterilizing,filling capping,counting and products discharging.It is a new kind of barreled water auto-producing line,which integrates mechanism,electricity and pneumatics technologies together.
?
Technical standard
|
Model? |
QGF100 |
QGF250 |
QGF300 |
QGF450 |
QGF600 |
QGF900 |
QGF1200 |
|
Filling?heads |
1 |
2 |
2 |
3 |
4 |
6 |
10 |
|
Volume(L) |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
|
Barrel?size(mm) |
φ270×490 |
φ270×490 |
φ270×490 |
φ270×490 |
φ270×490 |
φ270×490 |
φ270×490 |
|
Capacity(b/h) |
100 |
250 |
300 |
450 |
600 |
900 |
1200 |
|
Gas?pressure(Mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
|
Gas?consumption(m/min) |
0.37 |
0.37 |
0.6 |
0.8 |
1 |
1.5 |
1.8 |
|
Motor?power(kw) |
1.38 |
1.75 |
3.8 |
3.8 |
7.5 |
9.75 |
13.5 |
|
Weight(kg)? |
680 |
800 |
1500 |
|
