ISO Stainless Steel Water Barrels Filling Machine , 5 Gallon 20L 300BPH

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	XinMao		Place of Origin	China
Model Number	QGF

Product Description

Delivery Time:20-40day after getting the bottle sample
Certification:ISO

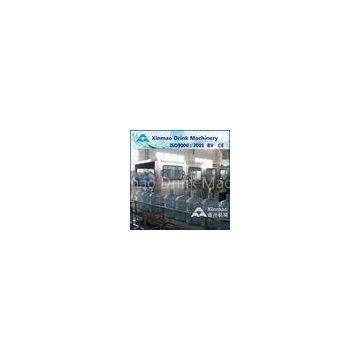

ISO Stainless Steel Water Barrels Filling Machine , 5 Gallon 20L 300BPH

Quick Detail:

Filling temperature: 20-40degree Bottle volume: 5 gallon 20L Filling capacity: we can offer 100bph-1200bph After service: with professional engineer to customer factory to installment and train Material: sus 304/316 Packing: wooden package Voltage: 380V 50Hz/ by order Power: 5-18KW

Description:

Automatic 3/5 gallon bottle washing filling capping ?machine ???????????
?

3-5GallonBarrel Water Line/ Filling Machine adopts Famous electrical complement and Made by Food stage SS 304.Working stable and reliable.

1. The 5Gallon Filling Machine is composed of barrel washer,barrel filling machine and barrel sealer into one unit.
?

2. Especially for filling drinking water of 3 and 5 gallons. It is an idea filling line to produce mineral water, distilled water and purified water.

3.The whole line is made of superior stainless steel, anticorrosive and easy to clean.
?

4. Only two operators are needed for a line, which is wholly automatic barreled.
?

5. Full-auto or semi-auto barrel de-capper, full-auto leakage inspection,full-auto barrel outside brusher, full-auto barrel loading machine, steam shrinking film machine and coding system can be choose depends on what customer\'s need.

Technical standard

Model?	QGF100	QGF250	QGF300	QGF450	QGF600	QGF900	QGF1200
Filling?heads	1	2	2	3	4	6	10
Volume(L)	18.9	18.9	18.9	18.9	18.9	18.9	18.9
Barrel?size(mm)	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490
Capacity(b/h)	100	250	300	450	600	900	1200
Gas?pressure(Mpa)	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Gas?consumption (m/min)	0.37	0.37	0.6	0.8	1	1.5	1.8
Motor?power(kw)	1.38	1.75	3.8	3.8	7.5	9.75	13.5
Weight(kg)?	680	800	1500	2100	3000	3500	4500
