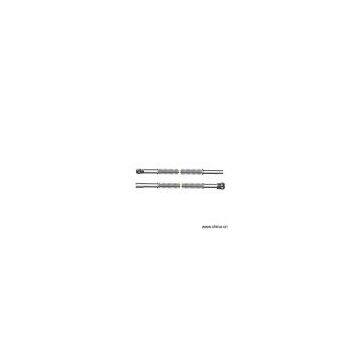

Sell 500kV Composite Link Rod

Model No.:FXLG-500/120
Product Origin:China
Brand Name:Gaoneng
Price Terms:
Payment Terms:
Certification:
Description:Product Name: 500kV Composite Link RodModel Number: FXLG-500/120Place of Origin: ChinaFeatures: 1) Manufactured by means of injection whole-molding technology 2) The juncture between end fitting and core is totally embedded in HTV silicone rubber, eliminating conventional and traditional seal defects Materials: 1) Silicon Rubber for sheds/ housing 2) Glass-fiber reinforced epoxy resin rod (ECR type) for core 3) Hop dip galvanized cast steel for metal fittings 4) One set of 500 kV composite link rod consists of two separate pieces Electromechanical specifications: 1) Rated voltage: 500kV 2) Specified mechanical load (tensile): 120kN 3) Arcing distance 4000mm 4) Creepage distance: ≥12000mm 5) Secton length: 4740mm 6) Routine test load: 60kN 7) Shed diameter: 42mm 8) Approximate net weight: 7.50kg 9) Length may be different according to the requirements of customers Inner packing: 1pc/handy bag 1set/2 bags
