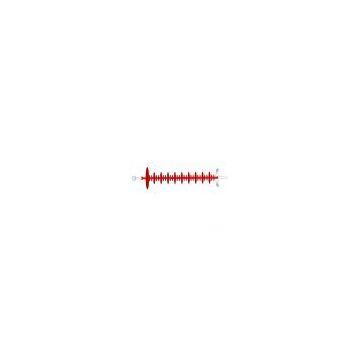

110kV Composite Tension / Suspension Insulator

Brand Name	Gaoneng		Place of Origin	China
Model Number	FXBW4-110/100-D

Features: 1) Manufactured by means of injection whole-molding technology 2) The juncture between end fitting and core is totally embedded in HTV silicone rubber, eliminating conventional and traditional seal defects Materials: 1) Silicon Rubber for sheds/ housing 2) Glass-fiber reinforced epoxy resin rod (ECR type) for core 3) Hop dip galvanized cast steel for metal fittings Electromechanical specifications: 1) Rated voltage: 110kV 2) Specified mechanical load (tensile): 100kN 3) Arcing distance 1020mm 4) Creepage distance: ??3430mm 5) Secton length: 1240mm 6) Lightning impulse withstand voltage (peak value): ??550kV 7) Wet 1 min power-frequency withstand voltage(effective value): ??230kV 8) Rountine test load: 50kN 9) Shed diameters (super-large/major/minor/minor): 300 / 162 / 86 / 86mm 10) Designed to be snow/ice proof and bird droppings proof 11) Number of the super-large sheds can vary and the super-large sheds be positioned according to the requirements of customers 12) From 110 to 750kV with super-large sheds like this are available 13) Approximate net weight (grading ring included): 8.1kg
