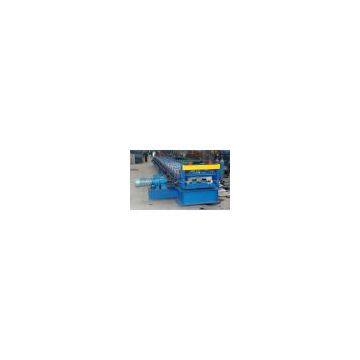

Floor deck roll forming machine 3

In recent years, with the screen, canning production lines, instrumentation, automotive, hardware and other industries on the tile press equipment demand is also growing. After market research, to meet the needs of SME, established a research tile press multistation CNC rotation tile molding machine research and development topics, the following cases can be explained with a floor deck roll forming machine direction of development:
Floor deck roll forming machine is a high precision rotation molding machinery, divided into upper and lower halves of the upper half of the upper die and the lower half of the system under the respective model systems installed a synchronous motor by a pair driven synchronous rotation of the upper and lower mold worm drive mechanism. On its transmission system, including the upper die sets, on the rotator cuff, punch, on the sets of blocks, the system includes a lower mold die, rotate the sleeve, the next set of seats, the next gear sets; vertical worm drive mechanism fixed to the seat shears shelf, the upper and lower worm, and were installed in the upper and lower drive sleeve; punch and die are mounted on the upper and lower sets of rotation, the rotating sleeve and sleeve tile press seat mounted on the upper and lower turret.
