10 / 7Gbps Bidirectional Data Links BIDI SFP+ Transceiver Compliant With SFP+ MSA Duplex LC Connecto

10 / 7Gbps Bidirectional Data Links BIDI SFP+ Transceiver Compliant With SFP+ MSA Duplex LC Connector

Specifications

Up to 10,7Gbps Bi-directional Data Links
Compliant with SFP+ MSA with duplex LC connector
1270/1330nm DFB laser Transmitte

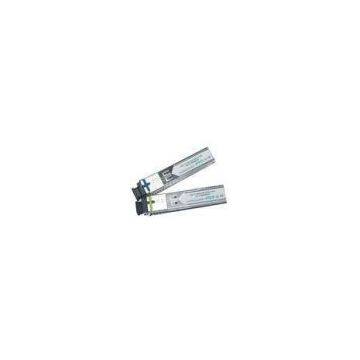

BIDI SFP+ Transceivers are Small Form Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gbps,it designed to be compliant with SFF 8472 and SFP+ MSA. The module data link up to 10km or 40km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.?

Features

Up to 10,7Gbps Bi-directional Data Links

Compliant with SFP+ MSA with duplex LC connector

1270/1330nm DFB laser Transmitter and 1330/1270nm PIN Receiver

Built-in digital diagnostic functions

Single Mode LC Receptacle Bi-directional Transceiver

Single +3.3V Power Supply and LVTTL Logic

EEPROM with Serial ID Functionality

Case operating temperature range: -5°C to 70°C
?

Applications

10GBASE-BX at 10.3125 Gbps

10GBASE-BX at 9.953Gbps

1000 Base-LX Ethernet

Ordering Information
