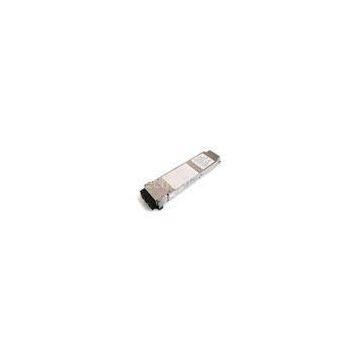

Hot-Swappable 40GBASE-SR4 100m MMF QSFP+ Optic Transceiver For 40GBASE Ethernet

Hot-Swappable 40GBASE-SR4 100m MMF QSFP+ Optic Transceiver For 40GBASE Ethernet

Specifications

40GBASE-SR4 QSFP+ optic (MTP 1×8 or 1×12), 100 m over MMF (not compliant with 10GBASE-SR4 modules per IEEE 802.ae standard).

Features

?Support for 40GBASE Ethernet

?Hot-swappable input/output device that plugs into a 40-Gigabit Ethernet QSFP+ Brocade switch port

?Flexibility of interface choice

?Interoperable with other IEEE-compliant 40GBASE interfaces available in various form factors

?Support for \"pay-as-you-populate\" model

Specifications

?Product: 40GBase-SR4 QSFP+

?Model Number: QSFP-40G-SR4

?Form Factor: QSFP+

?Interface Ports: 1 x 40GBase Ethernet

?Interface Details: 1 x 40GBase-SR4

?Connectivity Media: Multi-mode Fiber

?Distance: 150m

?Wavelength: 850nm

?Data Rate: 40 Gbps Gigabit Ethernet

Description:

The compatible 40GBASE-SR4 QSFP+ Module QSFP-40G-SR4 supports link lengths of 100m and 150m respectively on laser-optimized OM3 and OM4 multimode fiber cables. It primarily enables high-bandwidth 40G optical links over 12-fiber ribbon r cables terminated with MPO/MTP multi-fiber connectors. It can also be used in 4x10G mode along with ribbon to duplex fiber breakout cables for connectivity to four 10GBASE-SR optical interfaces. Maximum channel insertion loss allowed is respectively 1.9dB over 100m of OM3 cable or 1.5dB over 150m of OM4 cable.
