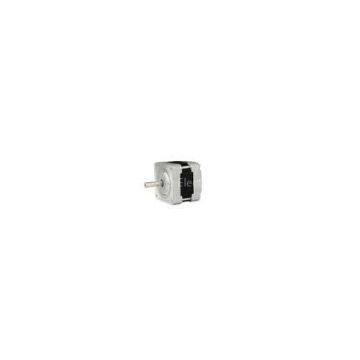

0.9 15inch Two Phase Hybrid Bipolar Stepper Motor With 4 or 6 Wire
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | CW | Place of Origin | China | |
| Model Number | NEMA15,39BHM |
Product Description
Certification:CE, ISO9001,ROHS,SGS
0.9o 15inch Two Phase Hybrid Bipolar Stepper Motor With 4 or 6 Wire
NEMA 15(inch)39BHM(MM)Series two-phase stepper motor
?
Description:
?
0.9o 39BYG NEMA 15 stepper motor
Phase: 2phase
Stepper Angle: 0.9o
Low Current
Small Holding Torque
Lead wire no.: 4 or 6 wires
Speed: low or high speed
Shape: Square
?
Application:
?
Our application fields refer to robot, music fountain, industrial electronic automation equipment, medical instrument, advertising equipment, stage lighting equipment, printer, textile machinery, external applicable equipment of computer, CNC router etc.
Step Angle-----------------------------1.8°±5%
Temperature Rise--------------------------80℃ Max.
Insulation Resistant--------100MΩ Min.,500VDC
Dielectric Strength--------500VAC for one minute
Ambient Temperature ----------—20℃~+50℃
Shaft Radial Play-------------------------------0.02Max.(450 g-load)
Shaft Axial Play--------------------------------0.08Max.(450 g-load)
NEMA 15(inch) 39BHM(MM)series step-motor parameter list |
|||||||||||
New Model | Old Model | No.of Phase | Voltage | Current | Inductance | Resistance | Holding Troque | Rotor Inertia | Weight | Length | Lead Wire Number |
V | A | mh±20％ | Ω±10％ | kg.cm | g.cm2 | kg | mm | NO. |
|||
39BHM24-060A | 39BYGH9306A-11 | 2 | 5.4 | 0.6 | 14 | 9 | 1.2 | 13 | 0.25 | 24 | 4 |
39BHM28-060A | 39BYGH-N9406A | 2 | 5.8 | 0.6 | 11 | 9.6 | 1 | 15 | 0.25 | 28 | 4 |
The motors are qualified with the CE certificate and ISO9001
The motors can be designed according to the customers requirements
