front end wheel forklift loader use for mining machinery

The performance introduction of whole machine:

Whole machine—Equipped with professional air-condition, single handle pilot control system, electronic control gearshift device to ensure  easy operation, Independent transmission oil and Hyd. Oil radiator improve the system stability.

Engine—Top-grade Diesel 247kw/h(336hp) WEICHAI engine with intercooler system, with multinomial patents, synthesize multilevel compound desert air filter technology, high efficiency, low noise and cooling technology, especially using in dusty environment.

Braking system—Hydraulic wet brake, safe and reliable performance. Four wheels automatic emergency braking when unpowered output or the system pressure is low, it is more secure and reliable in harsh working conditions.

Oil pipe—oil-pipes for high-pressure position adopts high-value and durable PARKER pipe. More reliable and durable.

Structure—Special design , thickening steel plate, the thickness of lift-arm and hinged panels reaches 80mm, Bigger hinged pin and hinged bearing to fully improve the carrying capacity. Lift-arm increases the lower beam structure which to improve torsional performance, the operating weight reaches 43000kg and the width reaches 3520mm to effectively improve the lateral stability of the whole machine. Double rocker arms solve problem which the stone and rocker arm collide, meanwhile also make the driver’s sight wider

Transmission and torque converter—Adopt CAT technology fixed shaft power shift transmission system, compact structure, long service life of gear. Make the whole machine more flexible, special for the harsh quarries’ working environment.

Fork—Bigger forks and fork arm carrier, the width of fork reaches 380mm; The fork distance reaches 1780mm  to ensure the big block is not easy to slide. Fork slope angle reaches 18 º, effectively solve the problem of unloading slope angle and taking out the fork when the height of the stacking goods reaches 3150 mm and height of loading reaches 1680 mm

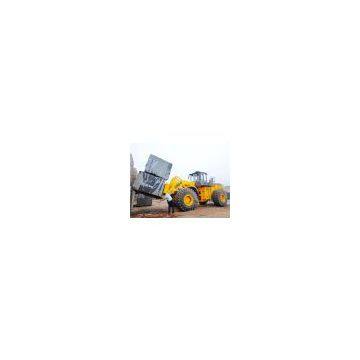

XJ988-40 Stone block forklift loader
