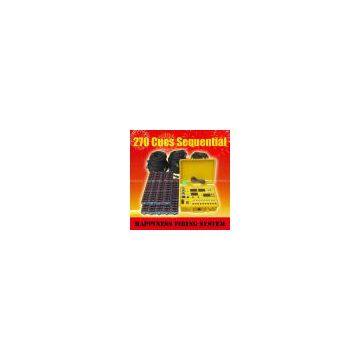

Waterproof / Digital case+ 270 cues + sequential fire fireworks firing system

Specifications

Item DE270-A firing system is worked by AC or DC power, which has the TEST function. Each channel could fire 20-30pcs igniters when use AC, about 10pcs when connecting DC. This system has the function of SALVO FIRE sequential fireand step by step fire. Time range for sequence is from 0.1-9.9 seconds. Moreover, step by step fire could alternate with sequential fire.

 Connect & Test

1. Connecting one 50M cables with one receivers into the cable switch on the main machine. And then using the other 2pcs 15M cables to connecting the rest 2 receivers. You can connecting the by the same manner.

2.Connecting the products into the black/red clips.

3. AC power-- Using the wire to connecting the plug 220V AC power and the 220V AC.

24V DC power—Using any kind of wire to connecting the plug 24V DC power and the DC power.

4. Turn on the power switch. When the Power light . Move the Safety switchto Testposition.

5. Move the button A,when the 10 LED in “Test indicationlight RED, it means the 10 channels in A district are all connecting well. If there is one LED not light, you need to check that the products connecting of that channel. You could use the same way to TEST each district one by one. (see the video)

6. After testing, move the Safety switchto FIRE position, now you could fire the products one by one.

Salvo fire

Fire some channels at same time—connecting the products into the same channel but in different districts.

For example, A1,D1 and F1 fire together. Turn on the cable switch And then move the button “A,D,F" to “ON" position. Now if you press button" 1",The 3 cues will fire together.(see the video)

Sequential fire

1.All 270 cues to do the sequential fire— Turn on the cables switches and all the buttons from “A…to I.Turn on the “Rapid switchand then adjust the sequence time by pressing the “Time+and“Time-buttons. After you finish adjusting the sequence time, now press the “Rapidbutton, all the channels will fire sequentially by the same time.

2.Several districts do the sequential fire—For example, to make districts“A,D,Ito do sequential fire .First, adjust the sequential time, and then turn on the districts“A,D,I,make sure the rest are off. And then press the “rapidfire, now the channels in the 3 districts will do sequential fire together.

Introduce for some parts on the main machine

1.AC fuse and control fuse

1) AC fuse—when the short circuit happen, the AC fuse will break to protect the machine

2) Control fuse—When there are some serious mistake when operate the machine, it will break for protecting .

2. Four digital tables

1) Total time—It is for accumulate the total time for the display

2) Channels’s time—It is for accumulate the time for each channel

3)Voltage/channel—It is for the output voltage and the channels are fired

4)Time/channel(s)—It is for sequential time and the sequential channels.

Some parameters

1.Accessory—one main machine, 9pcs 30cues receivers and 240M cables.

3*(50+15+15M)

2.Dimension of main machine-- 41*35*20CM

3.Total weight—48KG
