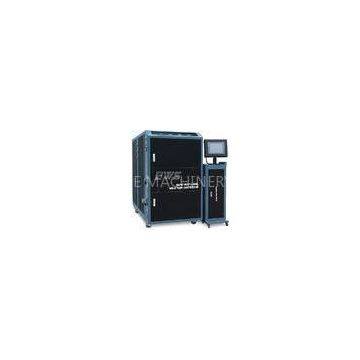

Energy Saving CE / ISO Mold Temperature Control Unit , BWS Series

Brand Name	AODE		Place of Origin	China
Model Number	BWS-400

Delivery Time:Within 20days after receiving deposit
Certification:CE|ISO

Energy Saving CE / ISO Mold Temperature Control Unit , BWS Series

Quick Detail:

1. Steam saturated temperature:182℃

2. Cooling water import and export diameter:DN40

3. Compressed air inlet diameter:DN15

4. Certification:CE & ISO

5. Control mode: Computer PLC processor+mak-machine interface touch control

6. Warranty:1 year

Description:

Eliminate the product surface soluble wiring and melted marks Increase the liquidity and fill effects of the plastic Improve the surface gloss, the surface roughness is similar to the mirror Products do not need to spray paint processing, increase the finished products rate by 20-30% Solve the fiber products floating fiber problem, make the product quality perfect

Specifications:

ITEM	UNIT	BWS-400
Power supply	V/HZ	3 phases 380/50
Total Power	KW	65
Total current	A	100
Control mode		Computer PLC processor + man-machine interface touch control
Steam Generation	Kg	90
Steam saturated temperature	℃	182
Heat pump power	KW	0.7
Power of cooling pump	KW	1.5
Cold hot water import and export diameter	Inch	Dn20 or 3/8(6 in 6 out)
Cooling water import and export diameter	Inch	DN25

Competitive Advantage:

1. Strict quality control system

2. Three factories in shenzhen, tianjin and suzhou. More than 60 offices in China.

3. Our product is environmental and energy-saving

4. We have the production certification organic heat transfer material heater

5. High density heat insulation cotton and aluminum foil

6. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST

7. Imported microcomputer or PLC

8. Customization thick copper pipe 1.0-1.2

Applications:

Chemical Industry

Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic? Injection molding, light guide plates, connectors, Chemical engineering, Shoe materials, Pringting and dyeing, Drying and banburying.

Nowadays, Aode Machinery Co.,ltd continue to uphold the purpose of international standards designs and high quality products, applying ourselves to providing high standard products and whole-journey nanny service. Our products are widely applied in plastic injection molding, light guide plates, connectors, chemical engineering, compression casting, reaction kettles, rubber tires, calendaring, shoe materials, printing and dyeing, drying and banburying and tec. And widely sold to Japan, America, Italy, Brazil, Southeast Asia, Africa and etc. The brand recognition from the market is sufficient to prove that our temp. control system can replace the imported similar products. Belows are our honor clients.
