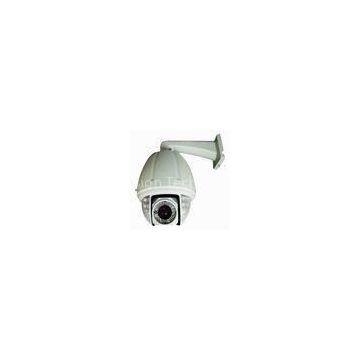

36X 600TVL Vandal-proof PTZ CCTV Camera PAL / NTSC , Waterproof IR 150M

Image sensor

1/3\" CCD

Signal model

PAL/NTSC

Horizontal resolution

600TVL

Effective pixel

PAL:976(H) x 582(V)?? NTSC:976(H) x 494(V)

Minimum illumination

0LUX(with IR), Color to B/W, with IR-CUT function

S/N radio?

≥60dB(Enhanced)

Backlight compensation

On/Off

White balance

Auto

Electronic shutter

1/50~1/12000 seconds

Focus length

3.0~90.0mm????

Optical focus

36X

Focus

Auto/manual, take high-performance DSP to realize complete digit and ultra-high speed focus function

Presets

256

Patrol track

4groups, each can record 200 actions

Cruise track

8 groups, every group have 30 presets can join cruise, can setting the presets\' residence time????

Other scan

4 groups, Support Horizontal scan, deuce area scan, scan random

Rotation range

Horizontal 360°unlimted rotation, Vertical 90°,auto reversal

Rotation speed

Horizontal & Vertical Min 0.01°,Max 200°/S

Communications

RS-485, PELCO D, PELCO P

OSD

Whole screen Chinese / english menu???? ????????

Special function???????

AWB, MASK, DNR, Strong light Optimizer, MIRROR, DSS

Temperature control????????

built-in

Intelligent IR lamps

150m

Power supply

DC12V/4A

Material

Aluminum shell,waterproof IP66

Work environment

-20°C~+50°C(select temperature control accessories), <95%RH
