0.1 Cross-flow Inorganic Ceramic Membrane Filter For Purifying

0.1㎡ Cross-flow Inorganic Ceramic Membrane Filter For Purifying


Quick Detail:

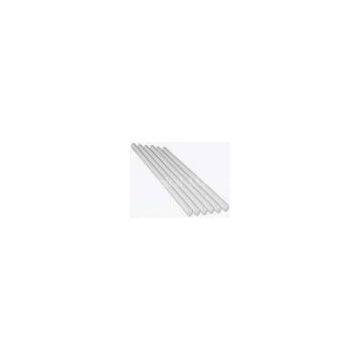

? ceramic membrane filter elements

ceramic membrane device separation equipment

inorganic ceramic membrane components

2.???? 2. Product use

With good chemical stability, acid and organic solvents, high temperature, anti-microbial ability, high precision separation, mechanical strength, easy regeneration, and long service life.

The products can be widely used in the following industry.

?Petrochemical Industry: Precision filtration and purification of chemical solution

????????????????????? ?Recycling and enrichment of catalyst

?????????? ????????????Product purification, grading and concentration

???????????????????? ??Waste oil purification, treatment and regeneration

????????????????????? ?Oil field water injection, purification and treatment

Bio- pharmacy: Antibiotics: dry bacilli sulfate, cephalosporin, inosine, erythromycin

???????????? Fermented organic acids: lactic acids, citric acids, etc

???????????? Amino acids: lysine, glutamic acid, phenylalanine, glycine, etc

???????????? Vitamins: VC, VB2, VB12

???????????? Chinese patent medicines: all kinds of unilateral and compound oral liquid, injection, herb extracts, etc

???????????? Zymins: fatty acid enzymes, protease, etc

Description:

Operation Principle

?? Organic ceramic membrane liquid-solid separation equipment uses organic ceramic membranes as filter element, and puts ceramic membrane into metal vessel to form membrane components of different specification. The equipment adopts highly effective “cross-flow” filtration, that is, pump the filtered liquid into the channel coated with ceramic membrane, material whose particle size is larger than membrane pore size shall be intercepted by membrane, purified liquid passes through membrane and support, when flow direction of filtered liquid is perpendicular to oozing direction of filtered liquid, cross-flow filtration is formed. Liquid flow in membrane tube may lighten formation of pollution layer.

Model selection of organic ceramic membrane separation device

Model selection of HTQ organic ceramic membrane separation device can be selected according to different industry and different separation material features. Ceramic membrane tubes of 7 pores, 19 pores, and 37pores can be selected. Then select membrane components of 19 sticks , 37 sticks, and 61 sticks according to users’ working condition.

Standard equipment models include 9㎡, 18㎡, 24㎡, 30㎡, 36㎡, 40㎡, 48㎡, 54㎡, 60㎡, 72㎡, 80㎡, etc.

Equipment components

??? The core technology of ceramic membrane cross-flow solid-liquid separation device is inorganic ceramic membrane. The equipment is composed of separation system, automatic backwashing system, automatic washing system, automatic control system.

Experiment equipment

HTQ multifunctional inorganic ceramic membrane experiment equipment includes ceramic membrane filtration, elements of different apertures, specifications and areas, which are fully functional. It can provide experiment, research and technical support for membrane filtration demander of research institutions and industrial and mining enterprises

Cross-flow ceramic membrane filter process flow diagram

Specifications

Cross-flow ceramic membrane filter product model
