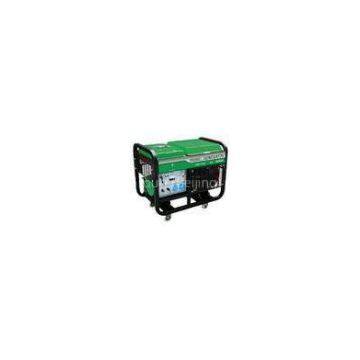

50Hz 60Hz 10KW 11KW Portable Diesel Generator , Single Cylinder

Brand Name	HIDIER		Place of Origin	China
Model Number	HDL1100

Delivery Time:Within 30 days after order
Certification:CE, UL, EPA , SONCAP, GOST.

50Hz 60Hz 10KW 11KW Portable Diesel Generator , Single Cylinder

Quick Detail:

1) 10KW/11KW?Rated.AC?output Twin cylinder Diesel Generator
2) 110-240V; 50-60 HZ
3) Twin cylinder, air-cooled & 4-stroke & air-cooled engine

4) 12 Volt D.C. auxiliary charging; AVR alternator

Description:

Hidier small-sized diesel generator sets adopt different diesel engines and brushless generators.? HDL1100 11KW AIR-COOLED DIESEL ENGINE GENERATOR SET has Twin cylinder & 4-stroke & air-cooled engine, low fuel consumption, high reliability; It is easy to maintain as adopting brushless A. C. Generator and CDI ignition system.?Hidier Portable Diesel Series are ideal to run an air conditioner, microwave oven refrigerator, or portable heater. On the job site, run a router, sander, drill, or air compressor.

Standard Features:

AVR alternator provides stable voltage and current; 12 Volt D.C.auxiliary charging; Low Oil Level Alert; AC Socket; Electromagnetic type AC circuit breaker; Voltmeter, fuel gauge, engine switch; Electric start with free maintanance battery. Handle Kits and wheels; Twin cylinder, air-cooled.

Optional Features:

Electric starting system with free maintenance battery; Customizable panel type: British panel, German panel, Three phase panel, Australian panel, Panel with hour meter, USA panel; Optional socket: South Africa socket, 3-plug socket, French socket; Hour meter; Overload protection; Digital controller; Remote controller; Double voltage; Automatic transfer switch (ATS); Emergency stop. Handle Kits and wheels

Applications:

Hidier Portable Diesel Series are ideal to run an air conditioner, microwave oven refrigerator, or portable heater. On the job site, run a router, sander, drill, or air compressor.

Suitable for areas on mining, factory, working on field, engaging in construction and army as movable power or electric power in ship, also suitable for areas on animal husbandry, fishery, forest, orchard, guesthouse and business as standby power.

Specifications:

MODEL	HDL1100?
?Frequency (Hz)	50	60
?Max. AC output (kw)	10	11
?Cont. AC output (kw)	11	12
?Voltage (V)	110-240
?D.C. output (V-A)	12 / 8.3
?Power Factor	1.0
?Engine Model	HD290
?Displacement (cc) / (cu.in)	954
?Engine Speed (rpm)	3000	3600
?Engine Starting System	Electric
?Lube Oil Capacity (L)	1.5
?Fuel Tank Capacity (L)	25
?Operational Capacity (hr)	10.8	9.5
?Dimensions (LxWxH) ?(mm)	925*590*810
?Net Weight (kg)	160

Competitive Advantage:

1) Stable Output: stable true sine-wave output with total harmonic distortion (THD) less than 1% and voltage and frequency fluctuation less than 1%.

2) More Economy: higher fuel economy and prolonged engine life.

3) Green & Reliable Power: Low oil pressure, high coolant temperature, over and under voltage, short circuit, and incorrect battery connection these protections are integrated into each set and ensure long, safe, and reliabl
