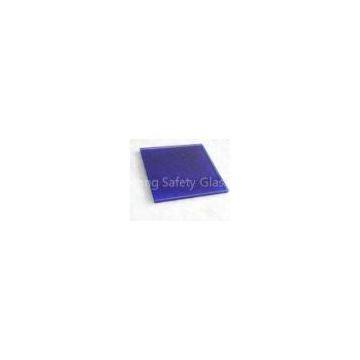

Energy Efficient Custom Safety Laminated Glass For Curtain Walls, Skylights, Canopy

Quick Detail:

1. Thickness of glass: 3mm+0.38PVB+3mm, 4mm+0.38PVB+4mm, 5mm+0.76PVB+5mm, 6mm+0.76PVB+6mm,8mm+1.14PVB+8mm,10mm+1.14PVB+8mm,12mm+1.52PVB+12mm,

15mm+1.52PVB+15mm

2. Colors: Clear, Ultra clear, Euro bronze, golden bronze, Blue, ocean blue, dark blue, light blue, F green, light green, dark green, Euro Grey, dark Grey.

3. Glass size,Max. size: 2100mm × 4200mm, Min. size: 300mm × 300mm

4. Applications: balcony doors and windows, sightseeing lift, elevator, curtain wall, block awning, shed light, etc

Energy Efficient Custom Safety Laminated Glass For Curtain Walls, Skylights, Canopy

Applications:

① construction areas: balcony doors and windows, sightseeing elevator peripheral wall, block awning, shed light, etc.; the building which has high requirements for security, can be made by functional laminated glass? bullet-proof glass, security glass, fire glass, such as banking, treasury, museum, galleries, jewelry shops cabinet, showcase and display cases, etc.;

② application in the building which required light control, energy-saving, noise reduction, such as: coated laminated glass, laminated endothermic glass, Anti UV laminated glass.

Description:

Laminated glass is a kind of composite glass which is made by two or more than two pieces of glass sandwiched with durable transparent film.

Based on the different production methods, laminated glass is categorized into dry and wet laminated glass. The outer layers of the laminated glass are comprised of either ordinary, tempered or semi-tempered glass. Some of the production progress are as follows: for dry laminated glass production, adhesive material is embedded between the glass layers and a durable film is placed, then apply heat and pressure to merge the two components.? For wet laminated glass production, adhesive is poured onto the glass surfaces and hot light polymerization is introduced. Following this stage, the now slurry compound is formed and placed for curing. Currently, the most common production method is dry laminated glass, where PVB film is used as the interlayer.

Laminated glass features: transparency, high mechanical strength, light fastness, heat-resisting moisture-proof and cold-resistant
Laminated glass performance: high shock resistance and security protection performance,? also sound insulation, anti-UV, anti-earthquake, anti-typhoon, anti-theft, anti-impact, bulletproof and other functions.
?

Specifications:

Competitive Advantage:

Sound Insulation: The PVB film has a strong damping effect on sound waves which will reduce the interference of noise.

Anti UV: Laminated glass has a high UV-blocking effect (up to 99% ,mitigation) and is commonly used to protect valuable interior furnishings such as displays and artwork from fading due to UV light.

Security: Laminated glass is designed and manufactured to resist high impact and damage making it difficult for glass cutters and other tools to cut through the layers. For this reason, laminated glass is commonly used in areas susceptible to vandalism, theft and violence.
Bullet-proof resistance: Multi-layered laminated glass can be used to produce various? types of anti-bullet, anti-bomb, explosion-proof glass.
Anti hurricanes and earthquakes: The PVB film of laminated glass has high tenacity and strong adhesion therefore even after breakage of glass, the fragments remain in the same position making it suitable to adopt in hurricane and earthquake susceptible zones .
