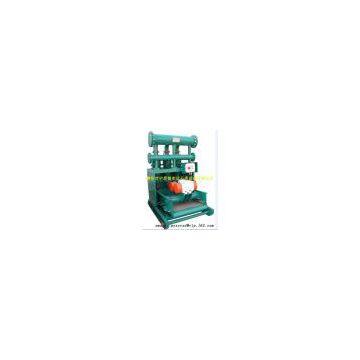

Desander
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Restar | Place of Origin | China | |
| Model Number | RSD/CSQ300*2-P |
Product Description
I. Use
1. Used for the second stage separation equipment of the solid control system which is used in drilling and horizontal wells.
II. Characteristics
1. Use balanced elliptical shaker to process bottom current of hydro cyclone with up to 200-300 meshes, which matches separated granulometric facies in desander, so as to guarantee complete separation of solid phase after separated by hydro cyclone and really realize mud recovery and cost cutting.
2. Use good abrasion ceramic material as liner to create a longer service life of hydro cyclone.
3. Designed capacity is within the range 100-400m3/h to meet different working condition demands.
|
Parameter |
RSD/CSQ300*2-P |
RSD/CSQ250*3-P |
RSD/CSS250*4-P |
|
Nominal diameter of hydrocyclone (mm) |
300 |
250 |
300 |
|
Number of Hydrocyclone(P) |
2 |
3 |
3 |
|
Capacity(m3/h) |
200~240 |
240~280 |
300~380 |
|
Separation(μm) |
50~150 |
50~150 |
50~150 |
|
Operating pressure(MPa) |
0.20~0.4(recommend 0.25) |
0~0.4(recommend 0.3 |
0~0.4(recommend 0.3 |
|
Screen size(length × width)(mm) |
730×600×2 150~200meshes |
930×780×2 150~200meshes |
1130×780×3 150~300meshes |
|
Power of motor(Kw) |
0.5×2 |
0.5×2 |
2.2×2 |
|
Type of shaker |
Purpose made |
Purpose made |
RSD2005-P |
|
External dimension(mm) |
1785*1130*2220 |
1700*1330*2220 |
2800*1880*2700 |
