High Efficient Scrap Copper Wire Granulator 1000 Kg/Hour

Brand Name	OPTIMA		Place of Origin	China
Model Number	OPTD-1000

Delivery Time:90 days

High Efficient Scrap Copper Wire Granulator 1000 Kg/Hour

Scrap cable crushing machine

Quick Detail:

Used cable recycling machine:

To recycle scrap wires and cables, reduce the waste, turn scrap cables into money. Vibration frequency and transducer control system. PLC control.? The motor of shredder and crusher is Star-delta starting. The shredder can reverse rotating when blocking. When crusher is over-current, the conveyor will automatically stop. There is protection switch when opening crusher. Thermal protection functions of motor. Motor missing phase protection function. Touch screen shows all operation parameters. One button start and stop.

Description:

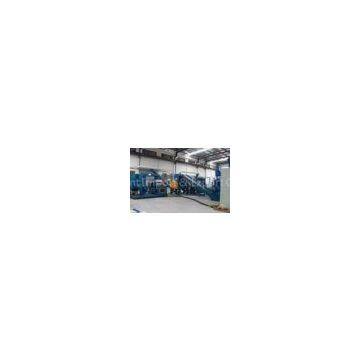

OPTD-1000 Cable recycling machine

OPTD1000 split type copper wire crusher machine adopts advanced design, rational structure, electrical controlled by PLC and reliable operation. This machine includes double-shaft shredder, belt conveyor, 2nd?crusher, helical elevator, 2 sets of vibrating and choosing separators, 2 sets of gatherers, hydraulic system and electrical control system. After be crushed, it can make sheath and core separated and gathered at different areas of the screen mesh’s surface. With airflow function and screen box straight shock excitation, the sheath and core be separated, and get copper particles, plastic pellets and mixture from different ports. Dust goes to dust gatherer through air flue. The vibrating screen controlled by transducer that can adjust frequency according to different conditions, meanwhile the air value controlled by adjusted valve. All these actions are be controlled by PLC, and the touch screen will show all parameters. This type of machine is easy to operation and maintenance, and the separated precision can reach 98%. It will be good choice for the recycled factory which suitable crushing the wasted cable’s overall size below 20mm and the capacity is 800~1000Kg/h.

Applications:

To recycle waste wires and cables, separate outer plastic sheath and inner conductor.

Specifications:

OPTD-1000 Cable recycling machine

Type	Double Shaft Shredder	Belt Conveyor	2nd?Crusher	Elevator	Vibrating and Choosing Separator	Gatherer	Electrical Control
OPTD—1000	Type 600 double shaft shredder. Motor power: 22kw	Type 800 belt conveyor Motor power: 2.2kw	Type 1200 Motor power: 75kw	2 sets helical elevators Motor power: 4kw X 2	2 sets vibrating screens Intensely motor power: 2.2kwX2 Blower motor power: 3kwX2	2 gatherers Blower motor power: 2×(3kw X 2) Gatherer’s vibrated motor power: 90wX2	PLC control 380—440V? 3 phase 50Hz or 60Hz

Competitive Advantage:

What we use for the crusher

1. Motor?????????????????????????????? ??????Siemens

2. Hydraulic station???????????????????? Taiwan famous brand

3. Bearing?????????????????????????? ??????? NSK

4. Electrical element??????????????????? Schneider

5. Blade material?????????????????????? ??? H13 Steel
