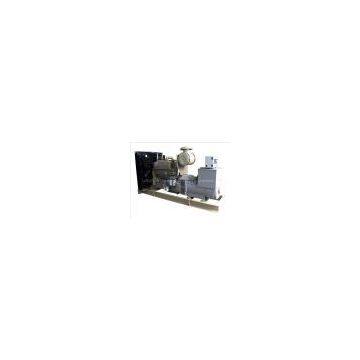

60kw/75kVA Chinese Weichai Diesel Generator Sets

Brand Name	LiZhiYuan		Place of Origin	China
Model Number	LZYW60

Rated Frequency (Hz)                50
Rated Output Power                   60KW/75KVA
Rated Voltage (AC) (V)               380/400
Rated Current (AC) (A)               135
Power Factor                               0.8 (lag)
Power Supply                              AC, 3-phase, 4-lines
Dimension (L*W* H) (mm)          2000* 780 * 1380
Net Weight (kg)                          1100
Engine Model                              R6105ZD1-1
Type                                           In-line, 4-strokes, water cooled,direct injection, diesel engine
Number Of Cylinders                      6
12h Rating Power [kW]                   75
Fuel Consumption (g/kW* h)           221
Rated Rotation Speed (r/min)           1500
Starting Method                                Electric starting
Cooling Method                                Closed cycle water-cooled
Air Intake Type                                 Natural
Speed Regulation                             Mechanical
Gen. Alternator Model                         WHI224F
Rated Output Power (kW)                    84
Excitation Model                                 Brushless, self-excitation
Insulation Class                                   F
Voltage Regulation                               AVR
