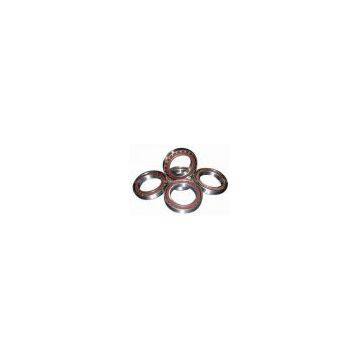

Single Row Angular Contact Ball Bearing 7030ACM For Printing Machines, Radial Load

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	KOYO, LYC, NSK, NTN, SKF, THK, TIMKEN, ZWZ，HRB		Place of Origin	China
Model Number	Various standard are available

Product Description

Delivery Time:30 days
Certification:ISO9001, ISO14001

Single Row Angular Contact Ball Bearing 7030ACM For Printing Machines, ? Radial Load??

Feature:

??? When the single-row angular contact ball bearing is carrying the radial load, they will be a component of force in the axial direction. Therefore it is suggested that two of there bearings be applied in back-to-back or face-to-face arrangements. Single row bearings can carry radial load and axial load in one direction. Double-row angular contact ball bearings have two designs of one outer ring and two inner rings and one outer ring and one inner ring. For the design with one outer ring and two inner rings, the axial clearance is easy to control during machining.

Applications:

??? These bearings are mainly applied in the machine tool spindles, high-frequency motors, gas turbines, oil pumps, air compressors, printing machines and other installations.

Designations	Principal dimensions(mm)	Basic load ratings(kN)	Function point	Speed ratings (rpm)	Weight (kg)
d	D	B	r12 min	r34 min	dyc (Cr)	stc (Cor)	a	Grease	Oil
7030ACM	150	225	35	2.1	1.1	118	170	61.2	2400	3000	4.8
