WaterProof Outdoor Advertising Flexible Led Display For Sports Stadium

Brand Name	Xiwan		Place of Origin	China
Model Number	BVO-16

Delivery Time:30days
Certification:CE,Rohs
WaterProof? Outdoor Advertising Flexible Led Display For Sports Stadium

Quick Detail:

Pixel Pitch(MM) : P16 Pixel combination : DIP 1R1G1B1W longer service life BVO series outdoor LED display is very suitable for advertising and media application due to the distinct advantages of low power consumption, high brightness, long life and good video effect. It can establish at business square, sports stadium, airport and station, highway etc.

Description:

BVO series ultra low power outdoor LED display or LED screen are new products with XIWAN new technology. Xiwan have invested millions of dollars on this new technology. Dedicate to save energy cost for big LED display and improve image quality very effectively. We have now developed P10, P12, P16, P20 and P25, you can choose according to your own applications.

Qualified LED core from Epistars, Silan and other big brand.

Qualified LED driving from Meanwell

Applications:

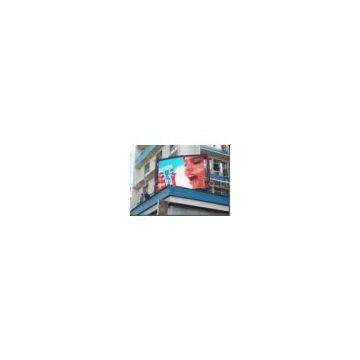

Advertising media, sports stadiums, airport station, business establishments, and public square

Specifications:

Item No.	BVO-P16
Pixel Pitch(MM)	P16
Module resolution	16*16
Module size(MM)	256*256
Pixel combination	DIP 1R1G1B1W
Pixel density	3906 pixels/㎡
Driving way	Static
Cabinet size(MM)	1024*1024
Cabinet resolution	64*64
Cabinet pixel	4096
The number of modules	16
Cabinet type	Fixed installation water proof iron box
Cabinet weight (Kg)	60
Average Power Consumption (W/㎡)	≤150W/㎡
The maximum power(W/㎡)	≤310W/㎡
Brightness (Cd/㎡)	9800
Gray scale	16bit(4096 levels)
Refresh rate	≥800
Brightness adjustment	256 levels
Frame frequency	60HZ
Input voltage	110~220VAC
Working temperature	-20℃~+50℃
Work humidity	10%-90%RH
Best stadia	≥12m
The whole screen perspective	H:135°;V:55°
IP rating	Front:IP65;Back:IP54
MTBF(hrs)	1000
Life span(hrs)	100000

Competitive Advantage:

Why Choose BVO ultra low power LED display?? 5 advantages of our product

●50% energy savings

Up to 50% reduction in energy consumption, in special circumstances, even more than 70%, it reduced the use-cost and greenhouse gas emissions greatly.

Take BVO-20 LED display as example, compared with ordinary products, per square meter can save energy over 160W for 1 h, a 100m2 screen works 24 hours per day, 365 days per year, it can save energy =(160W×100m2×24h×365)/1000 =140,160KW (KWH), reducing greenhouse gas emissions 106,241kg

●30% longer
