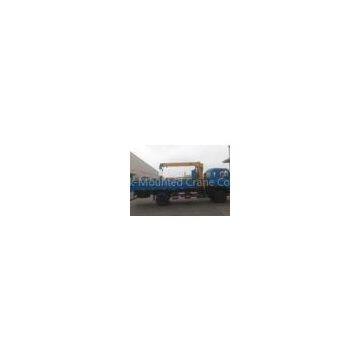

Heavy Things Truck Mounted Crane , 4T Lorry-Mounted Crane

Brand Name	XCMG		Place of Origin	China
Model Number	SQ4SK3Q

Delivery Time:20 days
Certification:CE, ISO

Heavy Things Boom Truck Crane , 4T Lorry-Mounted Crane

Name: Telescoping boom crane, Lorry mounted crane, Cargo crane truck, Truck loader crane, Hydraulic truck crane Max Lifting Capacity: 4 ton Max Lifting Moment: 8.40/10 T.M Max Oil Flow of Hydraulic System: 25 L/min Max.Lifting height:11meters Brand: XCMG Crane Weight: 1396 kg Oil Tank Capacity: 60 L Feature: Safety transportion, driven by hydraulic, move fast, The raise and down are driven by wire rope, telescopic boom coupling technology Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.

Description:

Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don\'t need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Telescopic boom crane widely used in transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions. They are the preferred equipment of modern logistics.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from?2 to?25 ton and outreach over 20 meters.

Telescopic boom crane??SQ4SK3Q is lifting capacity is 4tons, moment is 8.4T.M.

Applications:

It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

-

Specifications:??

?

Model	SQ4SK3Q	Unit
Max Lifting Capacity	4000	kg
Max Lifting Moment	8.40/10	T.M
Recommend Power	16	kw
Max Oil Flow of Hydraulic System	25	L/min
Max Pressure of Hydraulic System	20	MPa
Oil Tank Capacity	60	L
Rotation Angle	360° All Rotation
Crane Weight	1396	kg
Installation Space	850	mm
Choice of Chassis	EQ1092FJ; EQ1092FJ1; EQ1092F3GJ1; EQ1081GJ12D5; DFL1120B; LZ1120LAPT; HFC1132KR1K3; EQ5121GFJ; HFC1083K103R1D; EQ1110GLJ3; EQ1120GLJ; EQ1168TLJ; BJ1122V4PBB-A1; BJ1158VKPFK-2

SQ4SK3Q Lifting capability diagram
Working radius (m)	2.5	3.4	5.4	7.4
