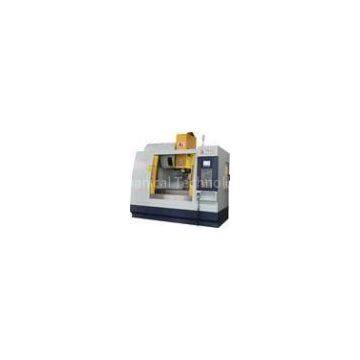

3 / 4 Axis High Speed Cnc Machining Center
- 0 Unit / Units per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Direct Driven Cnc High Speed Machining Centers
-
Box Guide CNC High Speed Machining Center, FANUC VMC Machining Centers
-
Heavy Duty Vmc 3 Axis Machining Center
-
High Milling Precision Heavy Duty CNC Machining Center
-
Belt Driven Cnc Vertical Machining Centers, Heavy Duty Machining Center
-
3 / 4 Axis CNC Heavy Duty Machining Center, 8000 Rpm Vertical Machining Centers
Product Details
| Brand Name | Harvest Star | Place of Origin | China | |
| Model Number | HS-850HD |
Product Description
Certification:ISO/CE
Type: CNC Vertical Machining Center, VMC machining center. Number of axes: 3 / 4 / 5 axis. Table size: 1,000*500 mm. Spindle speed: 50-12,000/15,000 rpm. Function: Heavy Cutting, Milling, Drilling and Tapping, High Speed Madding And Engraving. Dimension (L*W*H): 2,500x2,150x3,100 mm. Guideway Type: Linear Guide Way. Spindle Type: Direct Driven Spindle. System: MITSUBISHI / FANUC Controller.
?3 / 4 axis Vmc Machining Center, 10,000rpm Cnc High Speed Machining Center
Table Size: 1,000*500mm
Travel of?X/Y/Z: 800*500*500 mm
Rapid Traverse X/Y/Z: 48/48/36 m/min
Specifications:
|
Item |
HS-850HD |
Unit |
|
X Axis Travel |
800 |
mm |
|
Y Axis Travel |
500 |
mm |
|
Z Axis Travel |
500 |
mm |
|
Table Size |
1,000x500 |
mm |
|
T-slot Size |
5x18x105 |
mm |
|
Max. Load on Table |
450 |
kg |
|
Spindle Taper |
BT-40 |
# |
|
Spindle Speed |
50-12,000/15,000 |
rpm |
|
Spindle Nose Table Surface |
110-610 |
mm |
|
Spindle Center to Column Surface |
550 |
mm |
|
Spindle Power |
7.5(11) |
kw(HP) |
|
Spindle Torque |
47.7 |
N.M |
|
X/Y Axis Rapid Traverse |
48,000/48,000 |
mm/min |
|
Z Axis Rapid Traverse |
48,000 |
mm/min |
|
X,Y,Z Feed Rate of Cutting |
1-10,000 |
mm/min |
|
3 Axis Motor Power |
1.5/1.5/2 |
kw |
|
Max. Tool Weight |
7 |
kg |
|
MAX. Tool Length |
300 |
mm |
|
Max. Tool Diameter |
75/150 |
mm |
|
Positioning Precision |
±0.005/300 |
mm |
|
Repeating Positioning Precision |
±0.003/300 |
mm |
|
Controller |
MITSUBISHI / FANUC / SIEMENS | |
|
Coolant Tank Capacity |
150 |
L |
|
Pneumatic Source Requirement |
6-7 |
kg/cm2 |
|
Power Requirement |
18 |
KVA |
|
Machine Weight |
5,800 |
kg |
|
Machine Size |
2,500x2,150x3,100 |
mm |
