Home > Products > cable drum jack > Cable Drum Handling& Cable Drum Lifting Jacks
Cable Drum Handling& Cable Drum Lifting Jacks
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | deli | Place of Origin | China | |
| Model Number | 01 |
Product Description

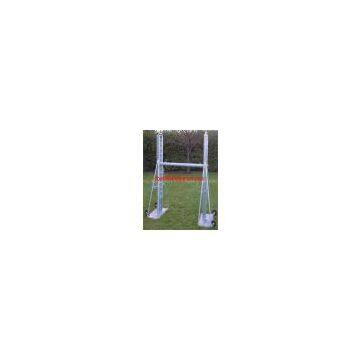

Cable Drum Handling& Cable Drum Lifting Jacks
Cable drum jack/mechanical drum jack/hydraulic drum jack-Designed for heavy drum lift.,which are almost indispensable for use in the cable.
1 TON/ 3 TON/ 5 TON/10 TON/15 TON Mechanical drum jack
Product No.: DL018 Mechanical drum jack
|
Product No. |
Rated load |
Applicable drum diameter |
Applicable drum width |
Axle bar diameter |
Dead weight |
|
DL018-1 |
1T |
φ1160mm-φ1700m |
≤1000mm |
φ60mm |
30kg |
|
DL018-3 |
3T |
φ1400mm-φ2100mm |
≤1400mm |
φ76mm |
40kg |
|
DL018-5 |
5T |
φ1600mm-φ2400mm |
≤1600mm |
φ76mm |
40kg |
Product No.: DL024 Mechanical drum jack
|
Product No. |
Rated load |
Backplane Thick |
Backplane Diameter |
Dead Weight |
|
DL028-2 |
2T |
6mm |
φ800mm |
50kg |
|
DL028-3 |
3T |
6mm |
φ850mm |
65kg |
|
DL028-4 |
4T |
8mm |
φ1000mm |
95kg |
|
DL028-5 |
5T |
8mm |
φ1200mm |
125kg |
1 TON/ 3 TON/ 5 TON/10 TON/15 TON Hydraulic drum jack
Product No.: DL011 Trapezoidal and hydraulic cable drum jack
|
Product No. |
Rated load |
Applicable drum diameter |
Applicable drum width |
Axle bar diameter |
Dead weight |
|
DL011-3 |
3T |
φ700mm-φ2100mm |
≤1500mm |
φ60mm |
90kg |
|
DL011-5 |
5T |
φ700mm-φ2400mm |
≤1700mm |
φ76mm |
130kg |
|
DL011-10 |
10T |
φ700mm-φ3200mm |
≤1800mm |
φ120mm |
210kg |
Cable Drum Handling& Cable Drum Lifting Jacks
