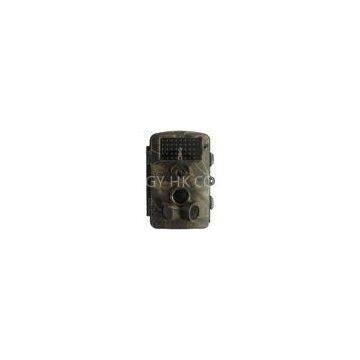

20fps Video 850nm Infrared Trail Camera With Laser light , Serial Number

Model

Parameters

Image Sensor

12Mega Pixels color CMOS

Max. Pixel Size

3000*4000

Lens

F=3.1;OFV=52°;Auto IR-Cut

IR Flash

65 Feet/20 Meters

LCD Screen

2.5 inch

Operation Keypad

7 Keys

Picture Size

3000*4000 12M

3264*2448 8M ‘

2592*1944 5M

Memory

32M? , SD card (32M to 32G)

Lase light

Laser light makes the camera focus to the shotting range .Just put Magnet Key on front of?? camera

Video Size

HD? 1280*720? 20fps

D1?? 720*480?? 20fps

640?? 640*480? 20fps

320?? 320*240? 20fps

PIR Sensing Distance

15M

Prep PIR Sensing Angle

Left and right light beams form an angle of 90°;

Main PIR sensing Angle

35°

Trigger Time

1 Second

Time lapse

1 sec—23H59M59S ;Programmable

Delay time

1 sec—23H59M59S ;Programmable

IR-LED mode

Day/Night/24H

Capture Mode

Single

Camera +video

3?? pictures

Video time

15 sec

30 sec

60 sec

120 sec

Timer

ON/OFF ; Timer set

Serial NO.

4 Digit NO.

Playback Zoom In

1-16 Times

Password

4 Digit NO.

Power Supply

4*AA; Expandable to 8*AA(With additional battery box)

Stand-By Time

5-10 Months(4*AA –8*AA)

Stand-by Current

0.17mA

Auto Power off

2 minutes while no keypad controlling

Power Consumption

160mA(+500mA? when IR LED lights up)

Low Battery Alarm

4 v

Interface

TV out ; USB; SD c
