Home > Products > Geared Traction Machine > Geared Traction Machine For Elevator / Lift , 0.5~1.0m/s YJ200A
Geared Traction Machine For Elevator / Lift , 0.5~1.0m/s YJ200A
- T/T L/C D/P D/A
- 7 days
You May Like
-
Geared Traction Machine , YJ240 6000kg Static Capacity
-
Geared Elevator Traction Machine , 0.5~1.0m/s VVVF Drive YJ245
-
VVVF Drive Geared Traction Machine , 7000kg Static Capacity YJ245-B
-
Geared Escalator Elevator Traction Machine , VVVF Drive ET160
-
Geared Escalator Elevator Traction Machine , VVVF Drive ET160-II
-
Geared Escalator / Elevator Traction Machine, VVVF Drive ET125
Product Details
| Brand Name | XINDA | Place of Origin | China | |
| Model Number | YJ200A |
Product Description
Delivery Time:30 days
YJ200A Geared Traction Machine
Drive: VVVF drive
Rated speed: 0.5~1.0m/s
Rated capacity: 1000~2000kg
Static capacity: 5000kg
Noise level: <64dB(A)
Torsional vibration: <3.0mm/s
Horizontal and vertical vibrations: <0.8mm/s
Mounting: mounted in machine room
Geared Traction Machine For Elevator / Lift , up to 1.0m/s , YJ200A

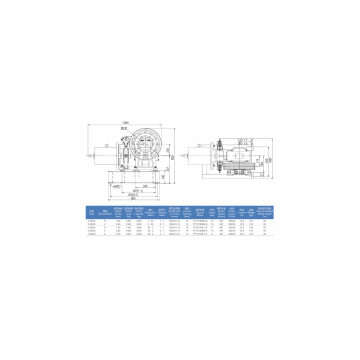

Arrangement: left side or right side (The picture is for right side)
Type of Machine | YJ200A-IV | YJ200A-V | YJ200A-VI | YJ200A-Ii | YJ200A-X |
Type of Control | VVVF | VVVF | VVVF | VVVF | VVVF |
Rated Load (kg) | 1000 | 1000 | 1150 | 1600 | 2300 |
Rated Speed (m/s) | 0.5 | 0.5 | 1 | 0.5 | 0.5 |
Lifting Height (m) | 60 | 60 | 60 | 60 | 60 |
Static Load (kg) | 5000 | 5000 | 5000 | 5000 | 5000 |
Traction Ratio | 1: 01 | 2: 01 | 1: 01 | 2: 01 | 2: 01 |
Reduction Ratio | 1: 55 | 2: 55 | 55:2 | 55:2 | 55:2 |
Specification of Traction Sheave | Φ 530-5-13 | Φ 530-5-13 | Φ 530-5-13 | Φ 530-5-13 | Φ 530-5-13 |
Groove Spacing (mm) | 19 | 19 | 19 | 19 | 19 |
Type of Motor | YPTD160M2-6 | YPTD160M2-6 | YPTD160L1-6 | YPTD160M2-6 | YPTD160L1-6 |
Power(kw) | 7.5 | 7.5 | 11 | 7.5 | 11 |
Motor Speed (r/min) | 967 | 967 | 967 | 967 | 967 |
Power Source (V/Hz) | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
Current (A) | 15.8 | 15.8 | 22.9 | 15.8 | 22.9 |
