Home > Products > C band lnbf > Wimax signal C band LNBF with 5150MHz for satellite TV

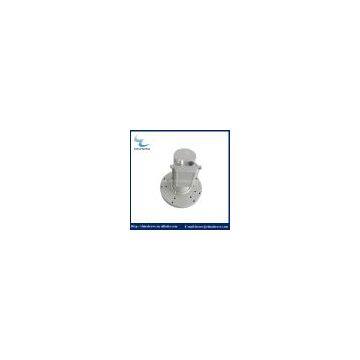

Wimax signal C band LNBF with 5150MHz for satellite TV
- 1000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
Product Details
| Brand Name | BOTE | Place of Origin | China | |
| Model Number | B380W |
Product Description
C band lnbf Anti-interference SPECIFICATIONS
|
Input Frequency: |
3.4 to 4.2GHz |
|
L.O. Frequency: |
5150MHz(±500 MHz@25centigrade) |
|
Output Frequency: |
950 to 1750 MHz |
|
L.O. Leakage Input Port: |
45dBm |
|
L.O. Stability: |
±1.5MHz(-40centigrade to +70centigrade) |
|
Noise Figure): |
<17°K typ |
|
Conversion Gain: |
>55dB typ |
|
Gain Flatness: |
±1 dBm(max) |
|
Intput VSWR: |
2.5:1(max) |
|
Output VSWR: |
2.0:1(max) |
|
Output Connector: |
F-female Connector |
|
Output Impedance: |
75Ω |
|
Cross Polar Isolation: |
20dB(min) |
|
Image Rejection: |
45 dB (min) |
|
Phase Noise: |
-75dBc/Hz@10kHz(max) |
|
Supply Voltage:
|
11.5-14.0v(Vertical Polarization) 16.0-19.0v(Horizontal Polarization) |
|
Operating Temperature: |
-40centigrade to +70centigrade |
|
Storage Temperature: |
-40centigrade to+80centigrade |
|
Relative Humidity: |
0%-95% |
