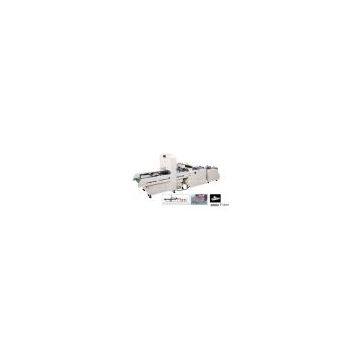

Full-automatic Double-line Hot-sealing & Hot-cutting T-shirt Bag (Vest Bag) Bag Making Machine

The Closest Service:
1.Free installation and ajustment.(for consumers purchase more than $100000 only)
2.One year free after-sales service and mechanical  parts lifetime warranty.
3 We will offer the professional answer and parts about relating machines in 48 hours on line even you.don’t buy ours..

Purpose

This machine is used to produce shopping bags (T-shirt bags) with HDPE and LDPE plastic films; it adopts one-step molding technology to continuously conduct covering, cutting and punching in one time with colorfully printed/non-printed plastic films

Performance & Feature

This machine adopts the microcomputer control, electric eye tracking, frequency control of motor speed, high parking, instantaneous stop and feeding and automatic counting function, making use of “gas cylinder” to conduct the punching and cutting of bag opening, conveyor belt to transmit finished products. The products are neat, stiff and smooth with high efficiency.

1. This machine is suitable for the production of heat-sealing & heat-cutting vest bags with PE materials.

2. The pneumatic feeding device is used for after-feeding materials; the feeding control adopts the friction wheel tension of variable frequency motor to control drive; the feeding speed is automatically set according to the motor speed requirements. The maximum diameter of the film roll is 800mm.

3. High speed PLC centrally controls servo feeding system and the whole machine.

4.The newly designed cutter structure: when the sealing knife needs to be cleaned up, you just need to turn it 180 degrees and fix it to clean. In this way, it is safe, reliable and easy to maintain.

5. Exterior independent double-line automatic sealing knife conducts material plugging tests and feeding break detections.

6. Gas-liquid pressurized cylinder punching and shearing machine ensures the low noise and small gas consumption.

7. E.P.C automatic feeding correction device is optional.

Main Technical Parameters
