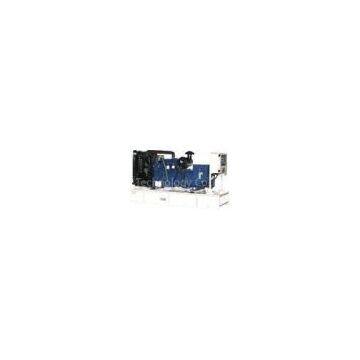

150kVA Genset Diesel Generator , 4 Stroke Perkins 1006TAG

1, Generating Set Model:? JPP150E

2, Engine Make & Model:Perkins 1006TAG

3,Alternator Model:LL3014F

3, Circuit Breaker Type:3 Pole MCCB

4, Frequency:50 Hz / 60 Hz

5,Cycle:? 4 Stroke

6, Engine Speed:1800 rpm

7, Cooling Method:? Water

8, Governing Type:? Electronic

9, Output Type: AC Three Phase

10,Base Frame Type:Heavy Duty Fabricated Steel

Perkins 60 Hz 150kVA Genset Diesel Generator , 4 Stroke

??????????? Ratings at 0.8 power factor.

P135 / P150E

Engine Technical Data

Physical Data????

Manufacturer: Perkins

Model:? 1006TAG

No. of Cylinders/Alignment:? 6 / In Line

Cycle: 4 Stroke

Induction: Turbocharged Air To Air Charge Cooled

Cooling Method:Water Governing

Type:? Electronic Governing

Class:? ISO 8528 G2

Compression Ratio:17.0:1

Displacement: l (cu.in)??? 6.0 (365.5)

Bore/Stroke: mm (in)? 100.0 (3.9)/127.0 (5.0)

Moment of Inertia: kg m2 (lb. in2) 1.61 (5502)

Engine Electrical System:

-Voltage/Ground: 12/Negative

-Battery Charger Amps:? 55

Weight: kg (lb)

- Dry: 586 (1292)

- Wet: 630 (1389)

Air System

Air Filter Type:? Replaceable Element

Combustion Air Flow:

m3/min (cfm)???????

-Standby:??????????????? 9.8 (346)???????? 13.2 (466)

-Prime:???????????????? 9.2 (325)???????? 12.7 (448) Max.

Combustion Air Intake

Restriction: kPa (in H2O)??? 5.0 (20.1)???????? 5.0 (20.1)

Radiator Cooling Air Flow:m3/min (cfm)

192.0 (6780)? ?244.0 (8617) External Restriction to

Cooling Air Flow: Pa (in H2O) 125 (0.5) 125 (0.5)

Cooling System

Cooling System Capacity:l (US gal)37.2 (9.8) 37.2 (9.8)

Water Pump Type: Centrifugal

Heat Rejected to Water & Lube Oil: kW (Btu/min)

-Standby:???????????? 72.9 (4146)????? 82.5 (4692)

-Prime:????????????? 66.4 (3776)????? 70.1(3987)

Heat Radiation to Room:kW (Btu/min)???????

-Standby:???????????? 39.1 (2224)????? 50.9 (2895)

-Prime:????????????? 25.3 (1439)????? 31.2 (1774) Radiator

Fan Load: kW (hp)???? 4.5
