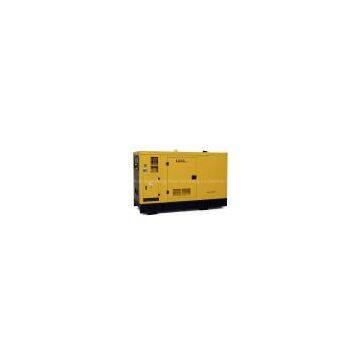

10kw diesel generator set
USD $1000 - $1000
/ Set
5 Sets(Min.Order)
- 5000 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | CN-Power | Place of Origin | China | |
| Model Number | CDG9500T3 |
Product Description
| CDG9500T3 | |
| Rate frequency (Hz) | 50 |
| Rated Output(kw) | 9 |
| Max Output(kw) | 10.5 |
| Rated voltage(V) | 400 |
| Rated current (A) | 13.7 |
| Rated speed (r/min) | 3000 |
| Phase Number | Three-phase |
| Power factor (cosφ) | 1(lag) |
| Engine Model | LH2V86S |
| Engine Type | two-cylinder,4-stroke,air-cooled,v-twin, direct injection |
| Bore x stroke (mm) | 86×72 |
| Displacement(L) | 0.836 |
| Compression ratio | 19:01 |
| Rated power (kW/(r/min)] | 12.3/3000 14.3/3600 |
| Fuel type | 0#(summer) -10#(winter) -35#(chill cold) diesel |
| Lube oil brand | SAE10W30 (above CC grade ) |
| Fuel consumption(g/kw.h) | ≤320 |
| Fuel tank capacity (L) | 25 |
| Starter system | electric starter |
| Noise level(dBA/7m) | (at the rated load) 78 |
| Structure type | super-silent |
