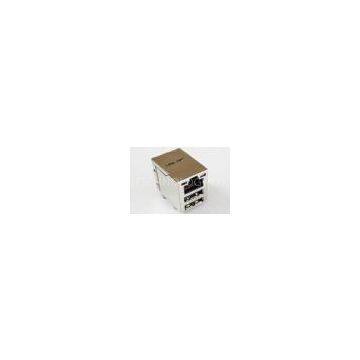

Female RJ45 Connector With Dual USB , 90 Degree RJ 45 PCB Jack

1.Minimum 1500Vrms isolation
2.10 / 100M Base RJ45 Jack
3.Shielded RJ45 Female Connector
4.Network Interface Module


Female RJ45 Connector With Dual USB , 90 Degree RJ 45 PCB Jack
?

Description:

10/100M RJ45 connector with dual USB

1. Product Type Features:??????????????????????????????????????????????????

? 1) Product Type = Connector??
??2) Jack Type = RJ45?
? 3) Profile = Standard?
? 4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:?
??1) Jack Configuration = 1 x 1

3. Electrical Characteristics:?
? 1) Shielded = Yes

4. Termination Related Features:
? 1) EMI Finger - Bottom = Without
? 2) Termination Method = Solder

5. Body Related Features:
? 1) Port Configuration = Single/Multi
??2) EMI Fingers -Top and Sides = With/ Without
??3) Latch Orientation = Standard - Latch Down
? 4) PCB Tail Length

6. Contact Related Features:
? 1) Preloaded = Yes
? 2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
? 1) Connector Style = Jack

8. Industry Standards:
? 1) RoHS/ELV Compliance = RoHS compliant, ELV compliant?
??2) Lead Free Solder Processes = Wave solder capable to 240°C,

????? Wave solder capable to 260°C,?Wave solder capable to 265°C
? 3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
? 1) Left LED Color (Position #1) = Green - 250 ohm resistor
? 2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
? 1) Applies To = Printed Circuit Board
? 2) Environmental Conditions = Office / Premises
? 3) Operating Temperature (°C?) = 0 -?70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

16 years production experience,

1100 staff,

100% test

Flexible delivery time
