Microcomputer controlled electro hydraulic servo four ball friction and wear testing machine

Microcomputer controlled electro hydraulic servo four ball friction and wear testing machine

The structure

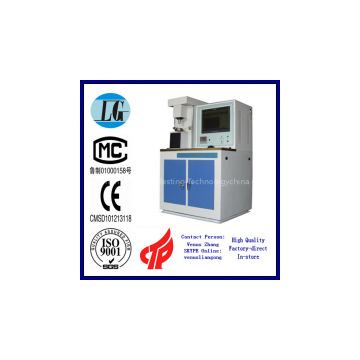

Four-ball tester consists of spindle drive system, the oil box with heater, determination of test, friction force sensor system, the hydraulic loading system, microcomputer control system, including the main parameter setting and control, alarm and other units) and other parts. They are all installed in the welding frame as the main body of the rack.

Stand in the top right panel is testing machine control system, the upper left is the spindle drive system and oil box, friction pair, and a variety of sensing instruments, etc. Frame is the bottom left of the testing machine hydraulic oil cylinder, on the lower right is the toolkit. Testing machine hoisting tools on them. Base and cover on the door, open the door can be clearly see its internal structure, in order to debug and maintenance.

Applicable standards

◇ GB/T12583-98 lubricant extreme pressure performance measurement (four ball machine method)

◇ GB3142-82 lubricant bearing capacity measurement method (four goals)

◇ SH/T0189-92 lubricant anti-wear performance measurement (four ball machine method)

◇ SH/T0202-92 extreme pressure grease performance measurement (four ball machine method)

◇ SH/T0204-92 grease anti-wear performance measurement (four ball machine method)

Technical parameters

1.Test force range (stepless adjustable)  60N-10kN

2.The relative error value for test force   ±1%

3.Long when the error value for test   ±1%F.S

4.Friction test range   0-300N

5.The friction test error  ±3%

6.The spindle speed range (stepless adjustable) 200-2000r/min

7.Spindle speed error   ±10 r/min

8.Friction pair temperature control  Room temperature-200℃

9.Error of temperature of friction pair  ±2℃

10.Test time control   1 seconds - 99 hours
