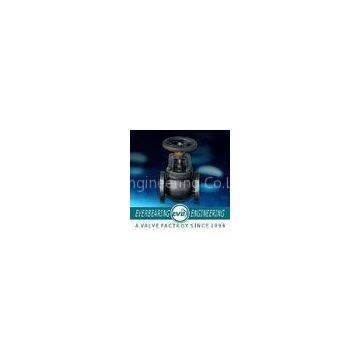

10K JIS B204 Globe Valve, GG20 GG25 DN50 ~DN445 Cast Iron GlobeValve For Water,Steam,Oil Media
US$ 10 - 1000 /
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
DIN3356 Water Angle Type Globe Valve, High Performance Manual Stainless Steel Cast Iron GlobeValve
-
Globe Valve with Bevel Gear, 2\" -12\" to API 600 Bs1873 Cast Iron GlobeValve With B. W. Ends To Ansi
-
Ductile Iron DIN3356 Cast Iron GlobeValve, PN10 or PN16 Forged Steel Globe Valve For Water Media
-
Ductile Iron Globe Value Flanged End Class125 / Class 150 To Ansi, Cast Iron GlobeValve
-
Oring 1500LB Globe Valve,SS304, 316 DN15--DN300, Forging Cast Iron GlobeValve With 800LB,1500LB Exp
-
10K JIS B204 Globe Valve, GG20 GG25 DN50 ~DN445 Cast Iron Globe Valve For Water,Steam,Oil Media
Product Details
| Brand Name | EVB | Place of Origin | China | |
| Model Number | GBV-017-B |
Product Description
Certification:ISO9001
10K JIS B204 Globe Valve, GG20 GG25 DN50 ~DN445 Cast Iron Globe Valve For Water,Steam,Oil Media
| cast iron?JIS globe valve Specification | cast iron 10K globe valve Application | ||||||
| Design Standard: JIS B204 | Working Temp: 100 °C | ||||||
| Flange Dimension: JIS B2212 | Working Pressure: 10K | ||||||
| Face to Face:?JIS B2002 | Suitable Media: Water,Steam,Oil ect. | ||||||
| Test Standard: JIS B2003 | Not recommended for Steam Service. | ||||||
| Materials | ? | ||||||
| No | Part Name | Materials | ?? | ||||
| 1 | Body | ASTM A126A(B) | GG20 GG25 | ||||
| 2 | Seat Ring | ASTM B36/B62,SS410 | Brass,Bronze | ||||
| 3 | Disc | ASTM A126A(B) | GG20 GG25 | ||||
| 4 | Steel Ball | A216 WCB | GS-C25 | ||||
| 5 | Packing | Graphite | Graphite | ||||
| 6 | Bonnet Gasket | Graphite | Graphite | ||||
| 7 | Stud | A216 WCB | GS-C25 | ||||
| 8 | Nut | A216 WCB | GS-C25 | ||||
| 9 | Gland | ASTM A126A(B) | GG20 GG25 | ||||
| 10 | Stud | A216 WCB | GS-C25 | ||||
| 11 | Bonnet | ASTM A126A(B) | GG20 GG25 | ||||
| 12 | Yoke Nut | ASTM B36 | Brass | ||||
| 13 | Screw? | A216 WCB | GS-C25 | ||||
| 14 | Stem | SS410 | X10Cr13 | ||||
| 15 | Handwheel | ASTM A126A(B) | GG20 GG25 | ||||
| 16 | Washer | A216 WCB | GS-C25 | ||||
| 17 | Nut | A216 WCB | GS-C25 | ||||
| Dimensions( JIS B2212 Flange drilling) | ? | ||||||
| ? | ? | ||||||
| DN | D | D1 | L | H | b | n | d |
| 50 | 155 | 120 | 203 | 300 | 20 | 4 | 19 |
| 65 | 175 | 140 | 216 | 310 | 22 | 4 | 19 |
| 80 | 185 | 150 | 241 | 355 | 24 | 8 | 19 |
| 100 | 210 | 175 | 292 | 380 | 24 | 8 | 19 |
| 125 | 250 | 210 | 330 | 430 | 26 | 8 | 23 |
| 150 | 280 | 240 | 356 | 490 | 26 | 8 | 23 |
| 200 | 330 | 290 | 495 | 630 | 26 | 12 | 23 |
| 250 | 400 | 355 | 622 | 720 | 30 | 12 | 25 |
| 300 | 445 | 400 | 698 | 900 | 32 | 16 | 25 |
| JIS Valve,JIS Globe Valve,10K valve |
