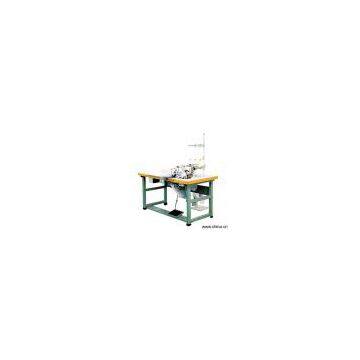

Sell Multifunction Flanging Machine

Model No.:DS-3
Product Origin:China
Brand Name:Yuantian
Price Terms:FOB Nanhai
Payment Terms:
Certification:
Description:Features: 1) Adopts KingtexSHG-7000 series of high speed straight needle sewing heads 2) Straight needle design with a maximum rotate speed: 7,000rpm 3) Auto oiling system ensures sufficient lubrication; cartridge oil filter makes replacement and cleaning easy 4) No need to change cam, due to the use of push-button type stitch length regulator 5) Micro adjustment of differential feeding ratios 6) Thread and needle cooling system: thread and needle can be lubricated and cooled by C10 oil, thread and needle breakage, and thread leaping can be avoided 7) Double-needle-five-thread synchronous structure and strong cloth-feeding system ensures feeding precision and perfect seam 8) The sewing speed can be controlled by imported needle position motor and control box 9) Equipped with pneumatic auto presser foot and special encoder to position needles 10) Low noise, small vibration and stable performance 11) Flanging thickness: 40mm 12) Flanging width: 25mm 13) Max. rotate speed: 7,000rpm 14) Stitch length: 1.5 - 5mm 15) Needle: DC x 27 16) Needle gauge: 2.0 / 3.0 / 5.0 17) Air pressure: 0.5 - 0.8MPa 18) Total power: 600W 19) Machine weight: 140kg
