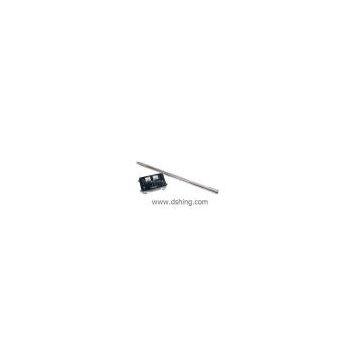

JJX-3A Inclinometer

Purpose:

1:The instrument is specially designed and made to determine dip angle and azimuth angle of borehole in the non-magnetic area.

2: The instrument is suitable for determining dip angle and azimuth angle of borehole, which should be more than 65 mm in diameter, non-magnetic and without casing tube. Then it can determine inclination and inclination direction of borehole.

3:The instrument has been widely used for inclination measurement in the field of engineering, hydrology, oil field, coal field, and geology.

Technical parameters:

1. Power supply: 90 V;

2. Dip angle measurement:

(1) Measurement range: 0°~50°;

(2) Scale division: 30′;

(3) Measurement error: ±30′;

3. Azimuth angle measurement:

(1) Measurement range: 4°~356°;

(2) Scale division: 5°;

(3) Measurement error: not more than ±4°;

4. Pressure endured by inclinometer probe: 50 MPa;

5. Maximum temperature for inclinometer probe: 100 ℃; Maximum temperature for controlling case on the ground: -20℃~+50℃;

6. Inclinometer probe:

(1) Diameter: 54 mm;

(2) Length: 145 cm (not including extending tube);

(3) Weight: 20 kg;

7. The instrument makes determination using point measurement methods. You can read out dip angle and azimuth angle directly on the controlling case. And can make determination at multi-points in the borehole.
