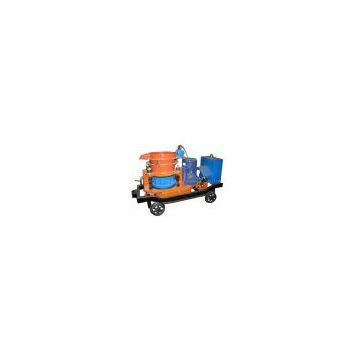

HSP-7B Explosion-proofing wet-mix Shotcrete machine
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | chinacoal | Place of Origin | China | |
| Model Number | HSP-7B |
Product Description
HSP-7B Explosion-proofing wet-mix Shotcrete machine
1,wet-mix shotcrete machine: simple operation low dust low rebound high-strength of concrete layer
2,Explosion-proofing motor
|
item |
|
HSP-7B |
|
Output |
5-7m³/H |
|
|
Max. Convey dist |
|
Horizontal:30m Vertical: 20m
|
|
Concrete proportion
|
|
1:4-5C/A |
|
Water cement ratio |
≤0.4 |
|
|
Hose inner size |
|
Φ51m/64mm |
|
Max. Aggregate size |
|
15mm |
|
Operating air pressure |
0.4-0.6MPa |
|
|
Air consumption |
10-15m³/min |
|
|
Rotor diameter |
|
480mm(160) |
|
Spring rate level |
|
≤10% |
|
The accelerating liquid adding amount |
|
0.3-0.7% |
|
main Electric motor power |
Y160m-6-7.5KW |
|
|
Accelerating metering pump |
|
pneumatic |
|
Electric Voltage |
380V or as your requirement |
|
|
Overall dimension(mm)
|
|
2000X800X1300 |
|
Whole weight |
|
800kg |
|
Rail wheel gauge |
600mm(762or 900mm)
|
