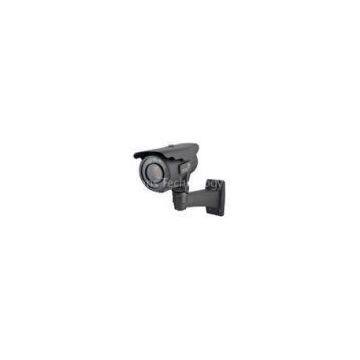

IC-LBMW30-ASM 54db IP66 540TVL Hi-sensitivity 1/3" SONY ICX639BK CCD Long Range IR Cameras with CDS

Place of Origin:

?China (Mainland)

Brand Name:

?OEM

Model Number:

IC-LBMW30-Bseries

Type:

Analog Camera

Style:

Bullet Camera

Sensor:

CCD

Technology:

Infrared

Special Features:

Waterproof / Weatherproof

Standard lens:

4-9mm manual zoom lens, 2.8-12mm lens is optional

CCD Type:

Sony Color CCD or Sharp Color CCD option

Case Material:

Metal Protection

Array LedS:

36pcs 5mm IR LEDs

Product Name:

Outdoor Bullet Zoom Long Range IR Camera(IC-LBMW30-B)

Product Type:

Long Range IR Camera

Signal System:

PAL/NTSC

Brand Name:

?OEM

Power Supply:

DC12V

Style:

Waterproof IR Camera

Model

IC-LBMW30-ASS

IC-LBMW30-ASQ

IC-LBMW30-ASM

IC-LBMW30-ASK

IC-LBMW30-ASF

IC-LBMW30-AHA

Image Sensor

1/3\" SONY ICX673AK CCD

1/3\" SONY ICX639BK CCD

1/3\" SONY ICX639BK CCD

1/3\" SONY ICX633BK CCD

1/3\" SONY ICX633BK CCD

1/4\" SHARP RJ2421FA CCD

Horizontal Resolution

700TV Lines?????????????? Hi-sensitivity?????????? Effio, ATR, OSD, NR

650TV Lines Hi-sensitivity, OSD

540TV Lines???????????? Hi-sensitivity

480TV Lines?????????? Hi-sensitivity

420TV Lines???????? Hi-sensitivity

420TV Lines???????? Hi-sensitivity

TV System

PAL/NTSC

Effective Pixels

PAL:976 (H)× 494(V) NTSC:976 (H) ×582 (V)

PAL:795 (H)× 596(V),???????????????????????????????????? NTSC:811 (H) ×508 (V)

PAL:752(H)x582(V) NTSC:768(H)x494(V)

PAL:500(H)x582(v)
NTSC:510(H)x492(v)?

IR LED

36pcs ?5mm IR LEDs

IR project distance

30 meters

Lens

standard: 4-9mm manual zoom lens

2.8-12mm manual zoom lens is optional

Minimum Illumination

?? 0 Lux/F2.0 (LED ON)
