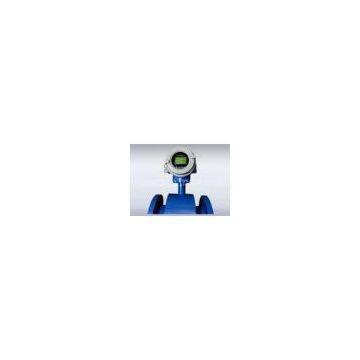

Industrial 0.2 - 10 m/s Electromagnetic Flow Meter, Thermal Mass Gas Flowmeter TLD32B1YSAC
- T/T L/C D/P D/A
- 7 days
You May Like
-
Electromagnetic Thermal Mass Flow Meter TLD25B1YSAC Urethane Rubber Underlining DN25
-
0.2 - 10 m/s Electromagnetic Flow Meters TLD15B1YSAC Urethane Rubber Underlining DN15
-
Tengine 0.4 - 2m TUF Open Channel Flow Meters / Flowmeter For Waste Water WL-1A1
-
Ultrasonic Sludge Density Meter For Sewage Treatment Plants USD10AC - USD-S1DN100C10
-
Ultrasonic Sludge Density Meter With Cast - Aluminum Transmitter USD10AC- USD-S1DN50C10
-
15m 4 - 20 mA Output Ultrasonic Liquid Level Difference Meter TUL20AC - TUL-S15C10
Product Details
| Brand Name | Tengine | Place of Origin | China | |
| Model Number | TLD32B1YSAC |
Product Description
Industrial 0.2 - 10 m/s Electromagnetic Flow Meter, Thermal Mass Gas Flowmeter TLD32B1YSAC
1.?Application
?Water?and?wastewater?treatment:?Inlet?pipeline,?outlet?pipeline,?sludge?pipeline,?etc.
2.?Features?and?Benefits
??The?4?electrode?measuring?system:?Measuring?electrode,reference?electrode,empty?pipe?detection?electrode;
??No?activity?parts?blocking?the?flow?in?the?measuring?pipeline,?and?no?pressure?losing.
??The?measuring?result?has?nothing?with?physical?parameter,?like?fluid?density,?viscosity,?temperature,
?pressure,?and?electric?conductivity?(not?less?than?5μs/cm),?etc.;
??Two?direction?measuring?system,?built-in?three?calculators:?direct?aggregates,?inverse?aggregates,?
and?difference?between?direct?and?inverse?aggregates.?
??Different?lining?and?electrode?material?could?be?selected,?has?good?corrosion?resistance;
??Unique?anti-interference?filter?circuit?and?arithmetic?processor,?output?stably;
??Variety?of?output?functions,?and?the?width?of?output?pulse?is?adjustable
??Grounding?electrode,?grounding?rings,?and?lightning?protection?devices,?ensure?the?safety.
??Measuring?Range?can?be?segmented?set;
??LCD?displays?a?plenty?of?information,?including?instantaneous?flow?and?cumulative?flow.
??Measurement?system?has?ability?of?avoid?vibration?and?electromagnetic?interference.
??Support?HART?protocol?communication?and?Profibus?is?Optional
3.?Specifications
|
Performance?characteristics |
|
|
Nominal?Diameter |
DN?10?~?DN?3000 |
|
Flow?rate?Range |
0.2?~?10?m/s |
|
Accuracy |
±0.5%?FS |
|
Repeatability |
0.1?% |
|
Calibration |
Factory?calibrated |
|
Display |
LCD |
|
Damping?Time |
0.5?~?60?sec.?(can?be?increased?second?to?) |
|
Power-off?Protection |
In?case?of?power-off?,?parameter?values?will?be?saved?in?memory?that?hard?to?lose,? |
|
Outputs |
|
|
Analog?Outputs |
4-20?mA?output |
|
Pulse |
3.6?~?3600000?pulse/hour,?Pulse?width:?0.5?~?500?ms |
|
Digital?Communication |
MODBUS?RS232/RS485,Profibus?DP?is?optional |
|
Power?supply |
|
|
AC?Power?Supply |
220?VAC±10%,?50Hz |
|
DC?Power?Supply |
24?VDC?±10% |
|
Physical?parameters |
|
|
Material?of?Shell |
Aluminum?alloy?with?acrylic?resin?coating |
|
Optional?material?of?electrode |
stainless?steel;?Hastelloy?C |
|
Optional?material?of?Lining |
Neoprene,?polyurethane,?PTFE |
|
Connection |
Flanged |
|
Environmental?conditions |
|
|
Ingress?protection |
--IP65?(Transmitter?of?split?meter) --IP68?(Sensor?of?separate?meter) --IP67?(Integrative?meter) |
|
Operating?Temperature |
-Transmitter:?-10?~?40℃ --Sensor:?-25?~?60℃ |
|
Humidity |
0 |
