Home > Products > Temperature Control Units > Plastic precise Water-Type Mold Temperature Control Unit with return water function

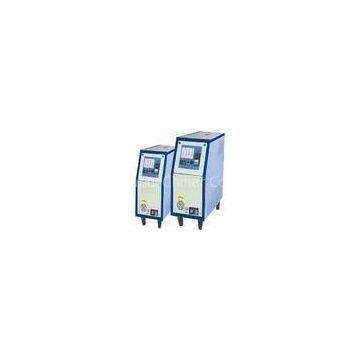

Plastic precise Water-Type Mold Temperature Control Unit with return water function
Negotiable
/ Set
1 Set(Min.Order)
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
9KW small size auto return water accurate Mold Temperature Control Units
-
Electric Process Heater Oil Temperature Controller Units for Injection Machine 180
-
ODM 180 Industrial Mold Oil Temperature Controller Units for Rubber and Plastic
-
18 KW OEM Indirect Cooling Industrial Plastic Oil Temperature Controller Unit 180 C
-
AC3380V 50HZ (5M) High Temp Heating Mold Oil Temperature Controller for Printing Machine
-
Microprocessor Mold Process Oil Temperature Controller Units 180 C for Rubber Plastic
Product Details
| Brand Name | Jiahui | Place of Origin | China | |
| Model Number | TTW-1210 |
Product Description
Certification:CE、ROHS、 FCC
Plastic precise Water-Type Mold Temperature Control Unit with return water function
mold temperature control unit
1.precise temperature controller;
2.Air blowing and return water function;
3.Direct cooling
1.precise temperature controller;
2.Air blowing and return water function;
3.Direct cooling
Plastic Water-Type Mold Temperature Control Unit
Features:
1. Computer control panel, Easy maintenance;
2. Japanese import microcomputer double group P.I.D temperature control scheduling, touch the type storage, the automatic calculation, save the electricity above 35%;
3. The safekeeping of security and the failure indication system is perfect;
4. Isolated electric box for longer services lives of electric appliances;
5. Import high-quality module, the using life is long;
6. Instant cooling return?water shut-down function;
7. The unique double heating capacity, suits for different temperature controlling place and saves energy;
8.304 stainless steel integrated pipelines for less pipe blockage and rust;
9. Automatic air-exhausting function after startup;
10.Return water function;
Perfect safety protection, fault display, easy repair and maintenance even without professionals
| Model | TTW-1205 | TTW-1210 | TTW-1220 | TTW-1230 | TTW-1250 | TTW-1410 | TTW-1420 | TTW-1610 | TTW-1620 | TTW-1650 |
| Heating power (KW) | 6 | 9 | 9 | 6*2 | 9*2 | 9 | 9 | 9 | 9 | 9*2 |
| Heat transfer medium | water | |||||||||
| Cooling method | direct | direct / indirect | direct | |||||||
| Min water pressure (kg/cm2) | 2~5 | direct 4-5?????????????? indirect 1-5 | 1~5 | |||||||
| Cooling water pipe | PT1/2 | PT3/4 | ||||||||
| Max. working temp. (°C) | 120 | 140 | 160 | |||||||
| Min. working temp. (°C) | Inlet temp. 5°C | |||||||||
| Temperature control accuracy (°C) | ±0.1°C | |||||||||
| Hot water pipe | 2 in 2 out PT1/4 | 4 in 4 out PT3/8 | 1 in 1 out PT1/1 | |||||||
| Cooling capacity (Kcal / h) | 5400 | 7500 | ||||||||
| Pump power (HP) | 0.5 | 1 | 2 | 3 | 5 | 1 | 2 | 1 | 2 | 5 |
| Pump flow (L/ min) | 35 | 45 | 145 | 200 | 280 | 45 | 145 | 120 | 145 | 280 |
| Water pump lifts (M) | 26 | |||||||||
| Power supply (V) | ac380v / 3P / 50HZ | |||||||||
| Total power (kw) | 6.5 | 9.9 | 10.5 | 15 | 22 | 9.9 | 10.7 | 9.9 | 10.7 | 22 |
| Wires specifications | 4*4 | 4*6 | 4*6 | 4*6 | 4*10 | 4*6 | 4*6 | 4*6 | 4*6 | 4*10 |
| Wire length (M) | 6 | |||||||||
| Dimensions L*H*W(cm) | 51*52*23.5 | 62*59*29 | 67*70*29 |
