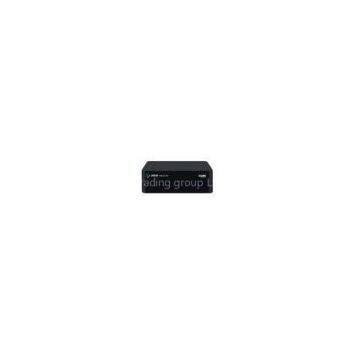

USB 2.0 DVB-S2 Digital Receiver, DVB Set Top Box STB Receivers With CI Port

Brand Name	Yaojin		Place of Origin	China
Model Number	1204

Delivery Time:35 days after confirm order
Certification:CE/FCC

USB 2.0 DVB-S2 Digital Receiver, DVB Set Top Box STB Receivers With CI Port

DVB-S2,1204,HD DVB-S2 set top box receiver +CI with USB 2.0 for PVR, timeshift and software upgrade

Description:

1. Fully SD/HD DVB-S2/S compliant,support full HD 1080p

2.Support SD/HD MPEG2 and MPEG4 AVC H.264

3.SCPC & MCPC receivable from C/Ku band satellites

4.DiSEqC 1.0/1.1/1.2/1.3(USALS) supported

5. Universal LNB, NIT search support

6.Auto and manually scan all available TV and radio channels

7.Support sotware upgrade over OTA

8.Powerful and highly effective 7-day EPG function

9.Multi-language menu,subtitle and audio output supported

10.USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback

11.Support aspect ratio 16:9, 4:3,Pan&Scan,letter box.

12.Support parental local and Teletext

13.Easy to use and attractive menu

14.Support various media files,including music,photo and movie files

Specifications:

DVB-S2 Tuner

Input frequency: 950 to 2,150MHz

Input level: -65 to -25dBm

Symbol rate: 1 to 45M

Input impedance: 75 Ω

Chipset:

Mstar MST7816

Channel Decoding

Wave form: 64/16/4QAM

Demodulation: QPSK,8PSK,16APSK,32APSK, (DVB-S /S2)

Transmission mode Core : LDPC/BCH (DVB-S2) 8PSK/QPSK, DVB-S QPSK

Rate: 1/2, 2/3, 3/5, 3/4, 4/5, 5/6, 8/9, and 9/10

Demultiplexer

Standard : ISO/IEC 13818-1, MPEG-2TS

Symbol rate: 1 to 45M

Video Decoding

Standard:ISO/IEC13818-14-2/-3/-7,MPEG-2/MPEG-4AVC/H.264,Divx

Aspect ratio: 4:3, 16:9

Video format:PAL / NTSC/ AUTO

Video resolution:1080P/1080i/720p/576p/576i(PAL) 1080P/1080i/720p/480p/480i(NTSC)

Audio Decoding

Standard:ISO/IEC 13818-1 -2/-3/-7,Optional supports Dolby,

Decoding: MPEG-1 Layer I and II, MPEG-2, MPEG-4 AAC/HE-AAC, MP3

Output Mode: L/R, Coaxial, HDMI, Scart

Sampling frequency:32, 44.1, 48KHz

Processor and Memory

Frequency: 550 MHz

AV Output

Video de-emphasis: CCIR REC.405-1, 1080P

Video bandwidth: 5.5 MHz

Video output impedance:75 Ω

Video output level: 1.0Vp-p

Audio output: Coaxial, L/R, HDMI

Audio output frequency: 20Hz ~ 20KHz

Audio output impedance:Low

Audio output level: A 1.0Vrms ± 2dB into 10K

Hardware Interface

Indicators: Power, signal lock

IR Receiver: 38KHz

AV output:? YUV, HDMI, Composite Video

RF Input: 75Ω F Type Female Connector

Loop Through Out: 75Ω F Type Female Connector

USB:? USB2.0

Power input Spec.: 90—260V AC 8W max

Dimensions

Unit size (W x D x H):220 x 160 x 38 mm

Unit weight: 1.2 kg
