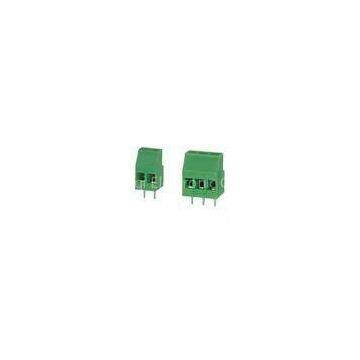

9AWG M3.5 Zinc plated Screw 300V 10A Terminal block connectors Nylon PA66
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
LS141V-2.54 High Density Wiring Spring Terminal Block Connectors, 13.5A
-
LC1 - 5.0 / 5.08 Pluggable Terminal Block Connector, Pitch 3.5, 3.81, 5.0, 5.08, 7.5, 7.62
-
7AWG VDE UL 94V-0 Grey Tin plated terminal block connectors 5.08mm pitch
-
custom M3.5 Screw 750V 16A Terminal block connectors 11AWG with 7.5mm Pitch
-
300V 55A 12AWG Terminal block connectors with Brass Wire Protectors 0.4N.m Torque
-
750V 20A 13.0mm Pitch Steel Screw terminal connectors block connectors 13AWG
Product Details
| Brand Name | Lianqi | Place of Origin | China | |
| Model Number | GSO700 |
Product Description
Certification:CE, ROHS,UL,SGS
9AWG M3.5 Zinc plated Screw 300V 10A Terminal block connectors Nylon PA66
Terminal block
Pitch:7.5mm H=29.5
Screw M4,Steel,Zinc plated
Terminal Brass,Ni plated
Wire Protector Brass,Tin plated
Terminal block
Pitch:7.5mm H=29.5
Screw M4,Steel,Zinc plated
Terminal Brass,Ni plated
Wire Protector Brass,Tin plated
Terminal block
all products have been approved by CE IMQ ROHS VDE and UL
| Pitch | 7.5mm H=29.5 |
| Approval | ApplyingUL VDE |
| Rated voltage | 300V |
| Rated current | 10A |
| Wire range | 6-22AWG |
| Torque | 0.4N.m |
| Screw | M3.5,Steel,Zinc plated |
| Insulating material | Nylon PA66UL94V-0 |
| Temperature range | -40/+120 |
| Terminal | Brass,Ni plated |
| Wire Protector | Brass,Tin plated |
| STD color | Orange/Gery |
? GSO700 Terminal block
