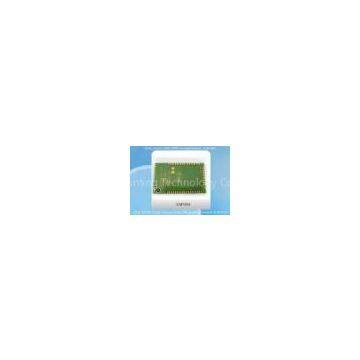

SIM700D

The new EDGE module is a complete Quad-Band GSM/GPRS/EDGE solution in a compact SMT module. Featuring an industry-standard interface, it delivers GSM/GPRS/EDGE 850/900/1800/1900MHz performance for Data, Voice, SMS, and Fax in a small form factor and with low power consumption. The leading features of the module make it ideal for applications, such as PC card, USB modem, handheld devices.

General Features
? - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
? - Mobile station class B
? - Multi-slot class 12
? - Uplink or downlink max throughput: 236.8Kbps
? - Output power:
GMSK:?
? - Class 4 (2W @ GSM850/EGSM900)
? - Class 1 (1W @ DCS1800/PCS1900)
8PSK:
? - Class E2 (0.5W @ GSM850/GSM900)
? - Class E2 (0.4W @ DCS1800/PCS1900)
? - GPRS/EDGE multi-slot class 12
? - Coding scheme:CS1~4, MS1~9
? - Mobile station class B
? - Control via AT commands (GSM 07.07, 07. 05 and SIMCom enhanced AT Commands)
? - Embedded Multiplexer protocol stack
? - Embedded TCP/IP protocol
? - SIM application toolkit
? - Supply voltage range 3.4 ... 4.5 V
? - Low power consumption
? - Normal operation temperature: -20 °C to +60 °C
? - Restricted operation temperature: -30 °C to -20 °C and +60 °C to +80 °C
? - Storage temperature: -40°C to +85°C
? - Dimension: 43.5*26*2.9mm

Specifications for fax
? - Group 3, class 1

Specifications for data:
? - CSD: up to 14.4Kbps, non-transparent
? - GPRS: max: 85.6Kbps
? - EDGE: DL&UL max: 236.8Kbps
? - Coding scheme: CS1~4, MCS1~9?
? - Support PBCCH
? - Support USSD

Specifications for voice
? - Half Rate (ETS 06.20)
? - Full Rate (ETS 06.10)
? - Enhanced Full Rate (ETS 06.50 / 06.60 /06.80)
? - Echo cancellation
? - Noise reduction

Compatibility
? - AT cellular command interface

Drivers
? - Multiplexer driver for Microsoft Windows

Interfaces
? - Power supply
? - Two analog audio channel
? - RTC backup
? - Serial port
? - USB slave
? - Bluetooth port
? - Antenna pad
? - Charge interface
? - LCD
? - SIM Card
? - GPIO

Certifications
? - CE?
? - GCF
