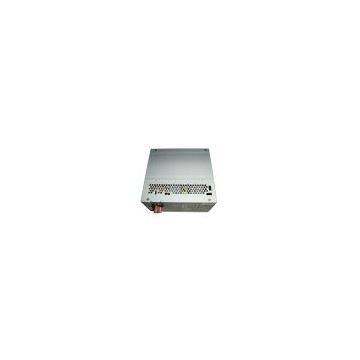

atx 200w PC Power Supply with 8cm Silent Fan for PC Computer Case
USD $8.0 - $9.0
/ Piece
1000 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
PS3 ps3 230w Computer Power Supply, Dongguan Power Supply Manufacture
-
Real 200w LED Screen Switching Power Supply,LED Driver
-
200w ATX Micro Computer Power Supply
-
230w Mini atx Computer Supplies,Desktop Computers
-
Active PFC 400w Computer Power Supply
-
300w PC Power Supply with Passive PFC for Computer Case
Product Details
| Brand Name | OEM | Place of Origin | China | |
| Model Number | JKY-ATX 200w |
Product Description
for PC Computer Case
|
External Appearance:
|
| Color: silver |
| Size: 150*140*86mm |
| Case: 0.5mm/SECC, electroplating |
| Fan: 8 cm silent cooling fan (auto temp control can be customized) |
| I/O swithing and 115-230vac swithing can be installed. |
| Output lines: 20+4P,SATA*2,HDD*2,4P (standard configuration) |
|
200W ATX PC Power Supply
|
||||||||
| Input | Voltage | 180Vac-264Vac | ||||||
| Frequency | 47-63HZ | |||||||
| Current | 2.5A (Max) At 230Vac/5.0A(Max) At 115Vac | |||||||
| Inrush Current | 50A At 230Vac Cold Star 25°C | |||||||
| Output | Rated Voltage | +12V | +5V | +5VSB | -5V | -12V | +3.3V | +5Vsb |
| Mini Load | 2.4A | 2.4A | 0.4A | - | 0.1A | 2.2A | 0.5A | |
| Max Load | 14A | 12A | 2A | - | 0.5A | 11A | 1.5A | |
| Peak Current | 16A | 16A | 2A | 14A | 2.0A | |||
| Ripple&Noise | 100mv | 50mv | 50mv | 50mv | 50mv | 50mv | ||
| Regulation | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ||
| Power | Rated Power | 200W | OPP | 280W | ||||
| Effiency | ≥75% | |||||||
| Output Wire | Connector | 20+4PIN | 4P | HDD | SATA | 6P | FDD | IDE |
| Quantity | 1 | 1 | 2 | 2 |
|
Features:
|
| Conform to Intel ATX12V 2.31 specifications designed and compatible with Intel, AMD dual-core platform, support to VISTA, Win7 operating system |
| Multifunction protection circuit design, with over-voltage, over-current, over-load, under-voltage, short circuit, lightning protection function,etc |
| Standby power less than 1W |
