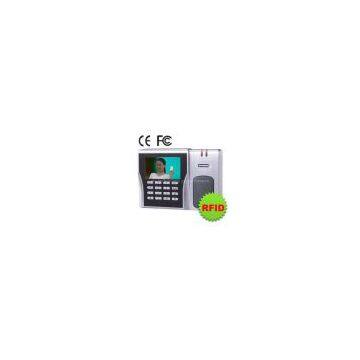

ZKS-T23C RFID Time Attendance & Access Control

Time recorder terminal ZKS-T23C

RS232, TCP/IP, Proximity/Mifare card reader

Features:
125 kHz Proximity Card Reader/ Mifare Reader

Built in embedded standalone module (ZKS710) with high performance SAMSUNG 32 bit

X-scale CPU, big capacity FLASH and CMOS chips, it is easy to integrate with various

systems

Be equipped with system of calendar which is on an equal footing with PC

Operates standalone without a computer

Audio-Visual indications for acceptance and rejection of valid/invalid card on large LCD display.

Adjust image distortion, assure fingerprint matching consistency.

Accept ODM or OEM, providing system local voice, menu language, software analysis, casing-making.

SDK available for OEM customers and software developers

Technical Parameters:

User capacity: 10,000

Transaction Storage: 50,000

Period of data: Keep data for 3 years when no current

Collecting rate: Port rate (9600BPS, 19200BPS, 38400BPS)

Verification mode: 1: N, 1:1

Response time: <0. 6 second

RFID distance: 6-12 cm

The capacity of connecting net: 255 units (TCP/IP), 31 units (RS485 mode)

Communication: RS232, TCP/IP, USB

Show: Time, ID number, Name

Language: English, French, Spanish, Czech, Indonesian, Portuguese, Turkish and so on

Working mode: Time & attendance, standalone, can work persistently

Time & Attendance mode: Password, card

Save function: Turn off device automatically for saving

Size: 189*50*137mm

Power supply: DC5V, 1A (AC 100V to 240 V, 50 to 60 Hz)

Warranty of period: 24 months

Temperature and humidity: 0 - 45, 20%-80%

Options: USB, backup battery,

Application: Factory/office/bank/hotel etc
