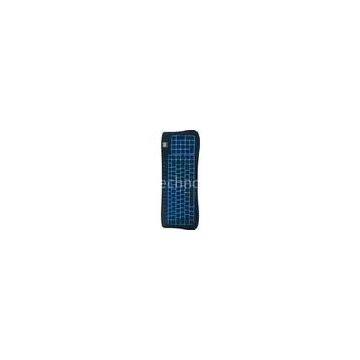

Dust-proof waterproof rugged metal industrial keyboard with laser-etched legend

Dust-proof waterproof rugged metal industrial keyboard with laser-etched legend

1,Vandal-proof LED backlight metal keyboard with touchpad
2,Dust/waterproof,IP65 rate
3,65 illuminated keys
4.Panel mount

Key Features:

1) 65 LED individually backlit/backlight/illuminated keys
2) with integrated touchpad
3) Panel mount, installing from behind
4) Protruding full travel(2.0mm)keys with laser-etched legend, excellent tactile feedback
5) Specially designed to operate in harsh and low-lit environments
6) Robust construction, high resistance against vandalism
7) Dust-proof and liquid-proof, meet IP65 requirement after properly mounted
8) PS/2 or USB interface for option 9) Customizable layout upon customer\'s request

Specifications:

Material

- Front panel: Brushed stainless steel
- Keys:High temperature-resistant polycarbonate
- Back panel: Aluminum alloy

Electrical Data

- Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
? Emission: EN 50081-1
? Immunity: EN 50082-1
- FCC: Part 15, class B - Safety: EN 60950, CE compliant

Environmental Characteristics

- Operating temperature: -20o C to + 60o C
- Storage temperature: - 40o C to + 80o C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40o C: 21 days, IEC 60512-6 - Dry heat test at + 85o C: 10 days, IEC 60512-6

Mechanical Data

- Actuation force for key:120±15g
- Key travel: 2.0mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4 - Shock resistance: 3 axis 150 m/s2 - 11 ms, IEC 60512-4

Touchpad

- Power supply voltage: 5 VDC ± 10%
- Current rating (active mode): 17 mA
- Interface: PS2 or USB
- X/Y position sensing resolution: 40 counts/mm
- X/Y position reporting: Relative - Tracking speed: Maximum 1, 016 m/sec

Compatible Operation system

- PS2: Win NT4, 98SE, 98ME, 2000, XP - USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX

Color

Keycap:black,grey or silver
Backlight:blue,green or red

Weight and Dimension

- Weight: 1.8 kg
- Dimension: Front panel: 400.0x124.0x22.2mm
?
