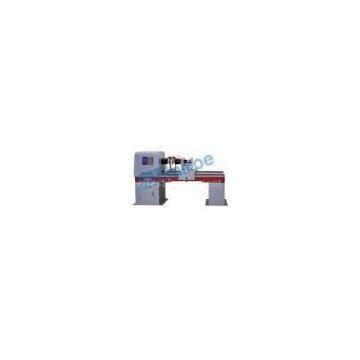

ETT-1000 Computer Control Torsion Testing Machine With Full-Scale Overload Protection

Brand Name	Bairoe		Place of Origin	China
Model Number	ETT-1000

Delivery Time:A month
Certification:ISO 9001, CE

ETT-1000 Computer Control Torsion Testing Machine With Full-Scale Overload Protection

Description:

These uniquely superior torsion testers provide loading and weighing capabilities in both directions of rotation. This feature makes it possible to conveniently determine not only the ultimate torque load of a specimen, but how that specimen behaves under conditions of continuous or intermittent torque loading in both directions. Essentially, each torsion tester comprises a variable speed drive loading system and a digital control and indicating system in a fixed unit. The weighing head with its strain gage torque sensor is mounted on a moveable unit, which can position on the rails to accommodate specimens of varying lengths.For maximum torsion testing versatility and capability,?BAIROE offers a full range of torsion testing machines in capacities from 500 to 3000 Nm.

Features:

Dynamic display of torque, rotation and real-time testing curve on the screen. Control over loading speed of torque and rotation, no stepping for loading speed. Support for setting a target value on torque, rotation and grip load at will. Automatically sustains when it reaches the specified value. Capable of sustaining at the maximum torque, rotation . Options for displaying curves including torque-rotation. Support for data searching. Returns the corresponding data at y-axis when entered the coordinate at x-axis. Support saving, instant retrieving and inspection of testing results. Capable of re-analyzing test data and curves, and partial zooming of testing curves at will. Support Excel report templates and customized editing of test reports. Integrated with travel limit protection and full-scale overload protection.

Technical Specifications:

Model	ETT-1000

Capacity (Nm)

1000

Torque measurement range

10~1000

Torque accuracy (%)

±1

Rotation measurement accuracy (%)

±0.5

Rotation rate range (deg/min)

0~10000

Distance between clamping grips (mm)

?600

Speed (°/min)

6-720

Specimen diameter between gauge length (mm)

?φ6-φ20

Power supply (kW) AC380v/50Hz

0.75

Frame dimensions (mm)

1700x510x1150

Weight (kg)

750
